Band Installation Note

  1. Install the band with the end pointed to the front.
  2. Cut off the end of the band at the position shown in the figure.

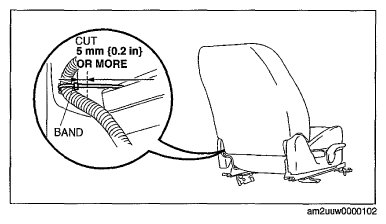

    Fig 1: Cutting Band
    G06941937Courtesy of MAZDA MOTORS CORP.
