2 Touring, 1.5 Y, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Symptom Troubleshooting [Keyless Entry System]
>>
Keyless Entry System Wiring Diagram [Keyless Entry System]
Keyless Entry System Wiring Diagram [Keyless Entry System]

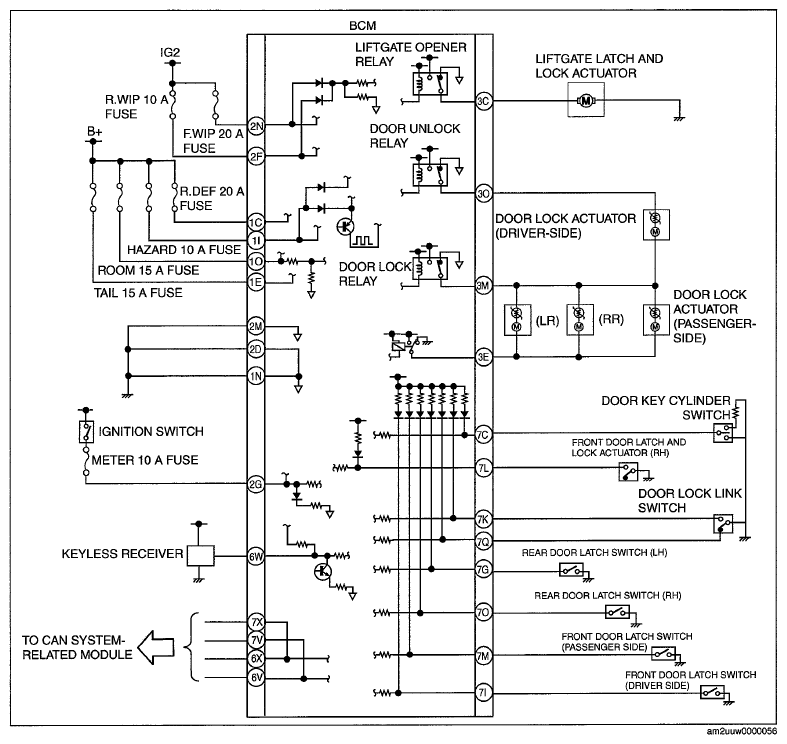

Fig 1: Keyless Entry System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
