Child Restraint Seat Anchor Removal/Installation

  1. Remove the cover.
  2. Remove the bolt.
  3. Remove the child restraint seat anchor.
  4. Install in the reverse order of removal.

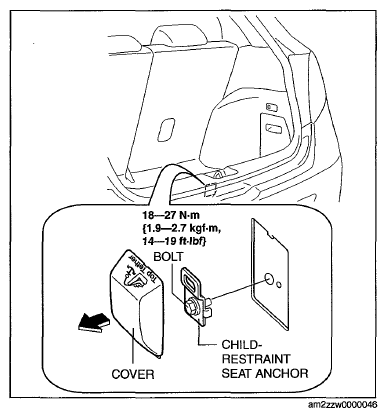

    Fig 1: Child Restraint Seat Anchor Cover With Torque Specifications
    G06941660Courtesy of MAZDA MOTORS CORP.
