On-Board Diagnostic Function [Keyless Entry System]

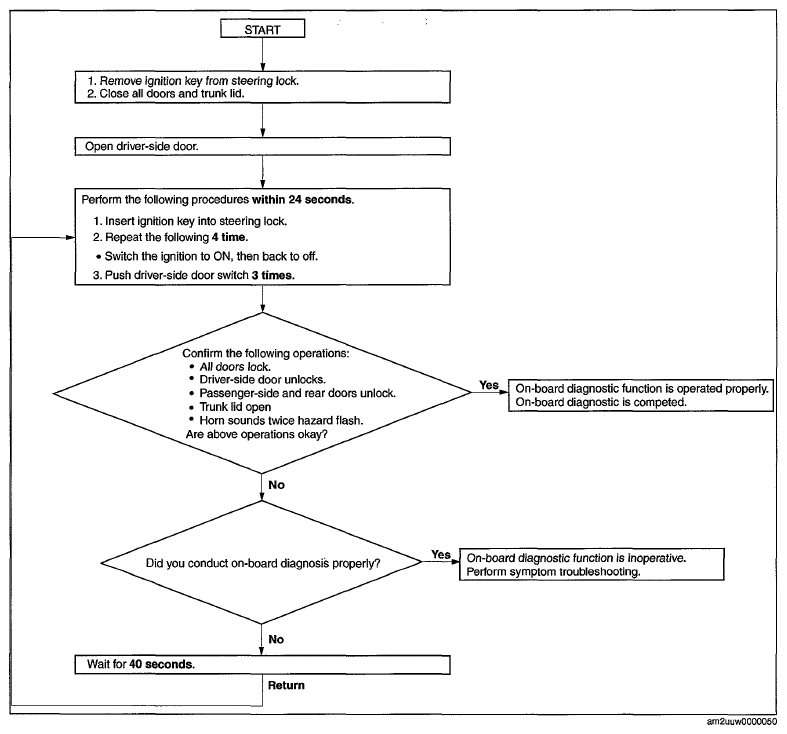

Fig 1: Keyless Entry System On-Board Diagnostic Function Chart

G06941749

Courtesy of MAZDA MOTORS CORP.
