Liftgate Latch And Lock Actuator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the liftgate lower trim.(See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

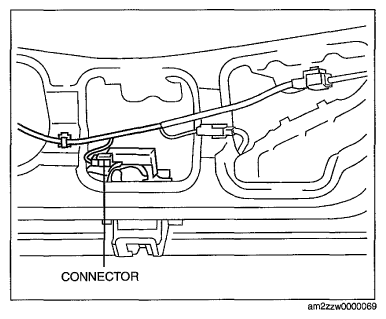

    Fig 1: Identifying Liftgate Latch And Lock Actuator Connector
    G06942063Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Remove the liftgate latch and lock actuator.
  6. Install in the reverse order of removal.

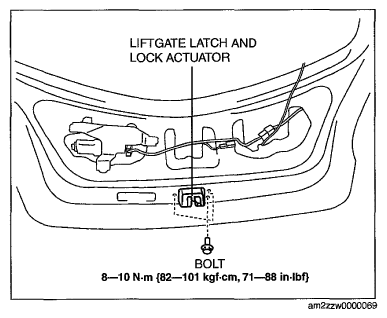

    Fig 2: Liftgate Latch And Lock Actuator With Bolt With Torque Specifications
    G06942064Courtesy of MAZDA MOTORS CORP.
