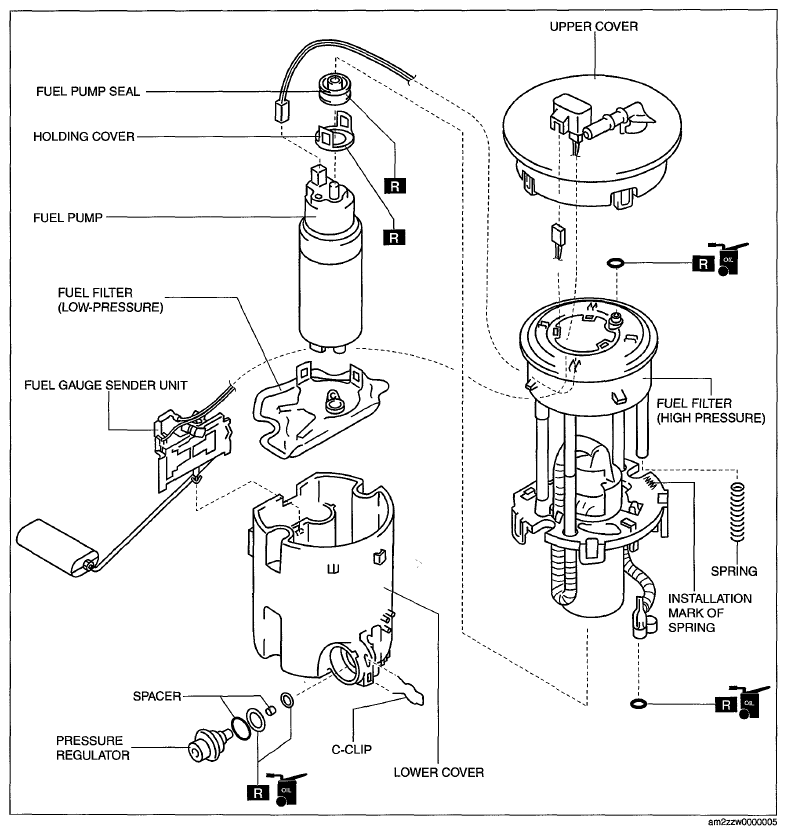

Fuel Pump Unit Structural View
FUEL PUMP UNIT REMOVAL REFERENCE CHART
| Part removed | Required part removal | ||||
|---|---|---|---|---|---|
| Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL .) (See FUEL GAUGE SENDER UNIT INSTALLATION .) |
Pressure regulator (See PRESSURE REGULATOR REMOVAL .) (See PRESSURE REGULATOR INSTALLATION .) |
Fuel pump (See FUEL PUMP REMOVAL .) (See FUEL PUMP, FUEL FILTER (LOW-PRESSURE), FUEL FILTER (HIGH-PRESSURE) INSTALLATION .) |
Fuel filter (low-pressure) (See FUEL FILTER (LOW-PRESSURE) REMOVAL .) (See FUEL PUMP, FUEL FILTER (LOW-PRESSURE), FUEL FILTER (HIGH-PRESSURE) INSTALLATION .) |
Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL .) (See FUEL PUMP, FUEL FILTER (LOW-PRESSURE), FUEL FILTER (HIGH-PRESSURE) INSTALLATION .) |
|
| Fuel gauge sender unit | x | - | - | - | - |
| Pressure regulator | x | x | - | - | - |
| Fuel pump | x | - | x | x | - |
| Fuel filter (low-pressure) | x | - | - | x | - |
| Fuel filter (high-pressure) | x | - | x | x | x |
