Combination Switch Installation Note

  1. Align the combination switch rib with the steering shaft guide and press the combination switch until it contacts.

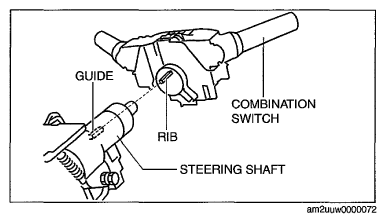

    Fig 1: Identifying Steering Shaft, Guide, Rib And Combination Switch
    G06942250Courtesy of MAZDA MOTORS CORP.
