Center Panel Unit Disassembly/Assembly: Notes

NOTE:
  • When disassembling the center panel unit, it could get scratched if it is placed directly on the ground. When disassembling the center panel unit, spread a soft cloth underneath to perform the work.
  1. Disassemble in the order indicated in the figure.

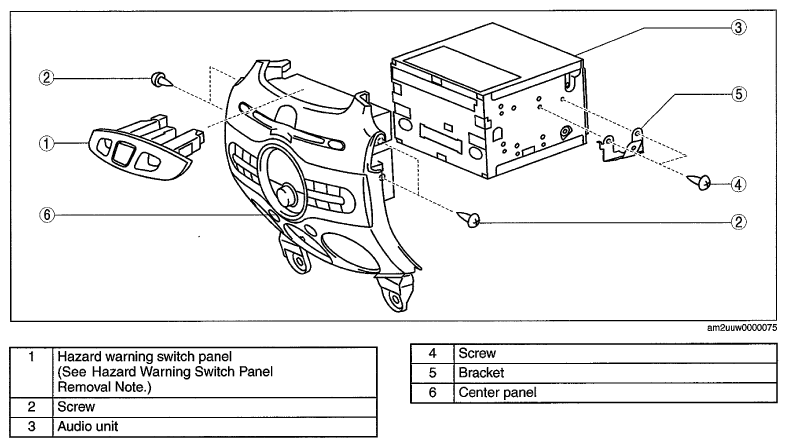

    Fig 1: Exploded View Of Center Panel Unit
    G06942318Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
