Cover Installation Note

  1. Secure the audio control switch wiring harness to the cover hooks.

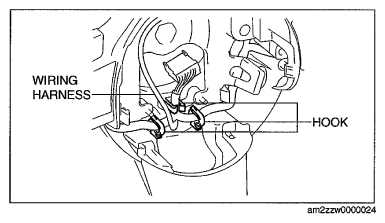

    Fig 1: Identifying Wiring Harness And Hooks
    G06942350Courtesy of MAZDA MOTORS CORP.
