Home >> Mazda >> 2010 >> Tribute i Touring, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Shift Mechanism >> Selector Lever Removal/Installation >> Notes

Selector Lever Removal/Installation: Notes

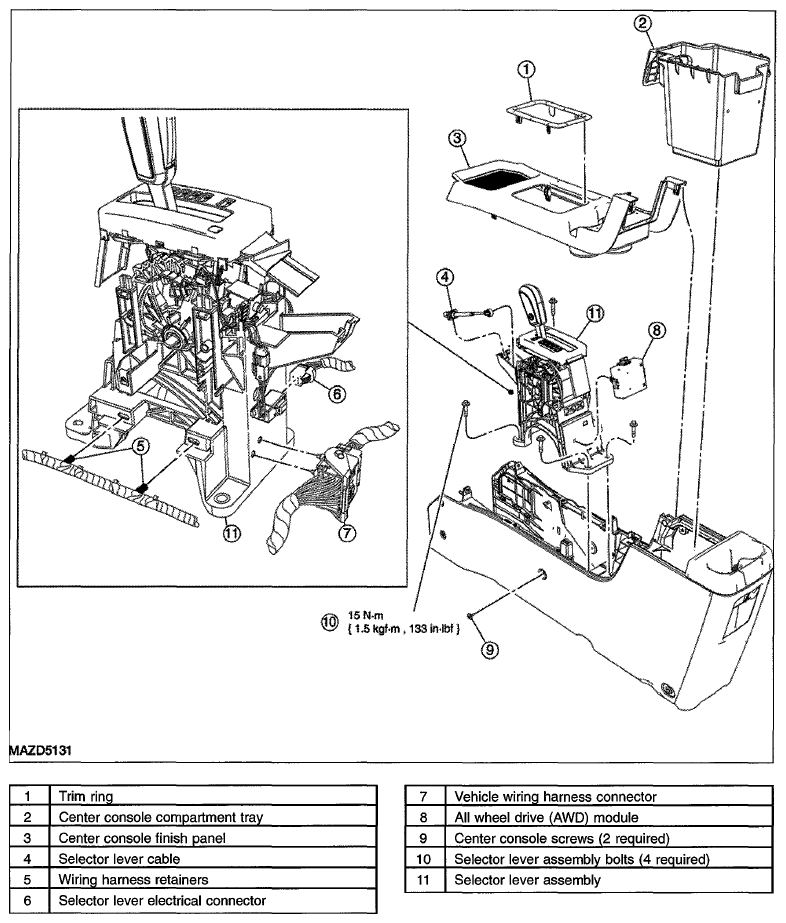

Fig 1: Selector Lever Replacement Components With Torque Specifications

G06767990

Courtesy of MAZDA MOTORS CORP.
