Selector Lever Removal/Installation: Installation

All vehicles

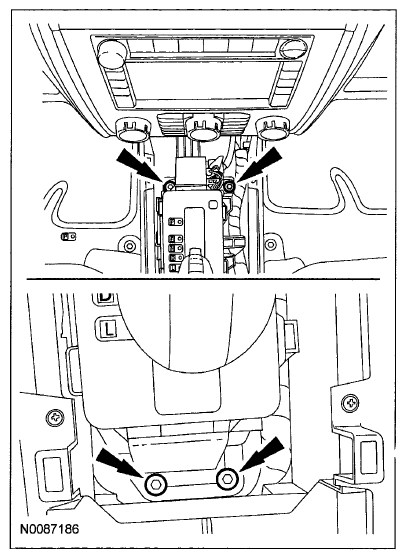

1. Install the selector lever assembly and the 4 bolts.
   • Tighten to 15 N.m {1.5 kgf.m, 133 in.lbf}.
     Fig 1: Locating Selector Lever Assembly And Bolts

     Courtesy of MAZDA MOTORS CORP.

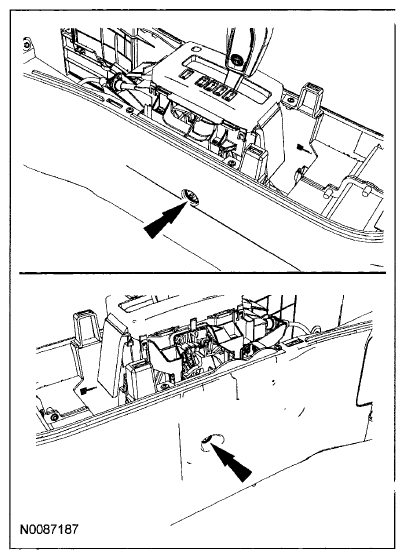

2. Install the 2 center console screws.
   Fig 2: Locating Center Console Screws

   Courtesy of MAZDA MOTORS CORP.

   AWD vehicles

3. Install the AWD module on the back of the selector lever.
   Fig 3: Locating AWD Module On Back Of Selector Lever

   Courtesy of MAZDA MOTORS CORP.

   All Vehicles

4. Connect the electrical connectors to the selector lever.
   1. Install the vehicle harness connector on the selector lever.
   2. Connect the selector lever electrical connector.
      Fig 4: Identifying Selector Lever Electrical Connector

      Courtesy of MAZDA MOTORS CORP.
5. Connect the wiring harness retainers to the selector lever.
   Fig 5: Locating Wiring Harness Retainers To Selector Lever

   Courtesy of MAZDA MOTORS CORP.

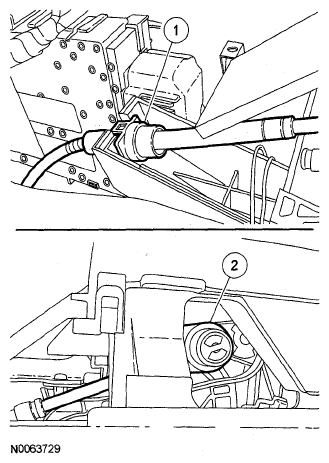

6. Install the selector lever cable on the selector lever assembly.
   1. Install the selector lever cable on the bracket.
   2. Connect the selector lever cable end.
      Fig 6: Identifying Selector Lever Cable On Selector Lever Assembly

      Courtesy of MAZDA MOTORS CORP.
7. Install the top finish panel.
   Fig 7: Locating Top Finish Panel

   Courtesy of MAZDA MOTORS CORP.
8. Install the center console compartment tray.
   Fig 8: Locating Center Console Compartment Tray

   Courtesy of MAZDA MOTORS CORP.

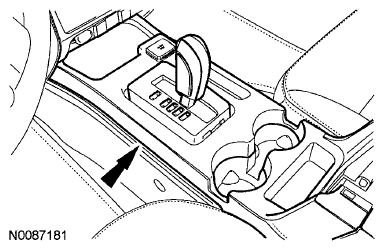

9. Install the upper selector lever trim ring.
   Fig 9: Locating Upper Selector Lever Trim Ring

   Courtesy of MAZDA MOTORS CORP.
10. Adjust the selector lever cable. See SELECTOR LEVER CABLE ADJUSTMENT  .
