External Controls: Notes

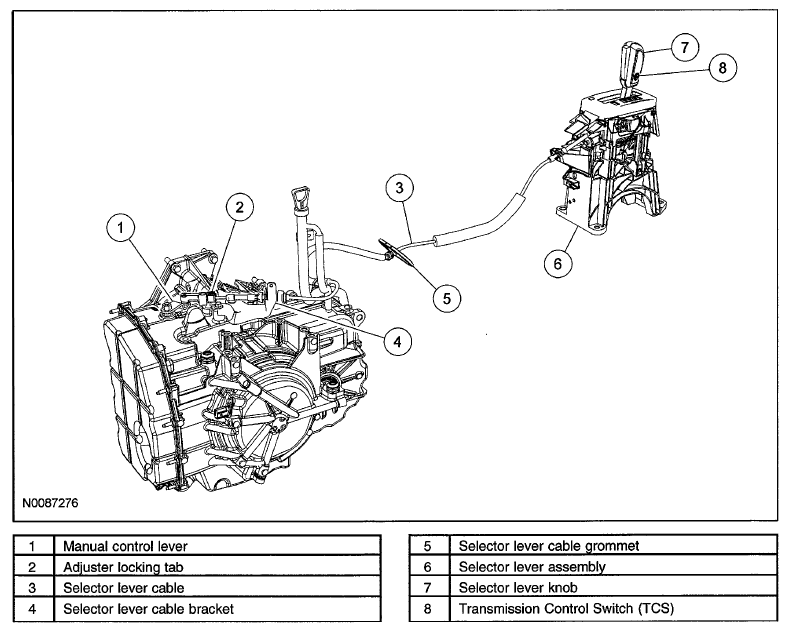

Fig 1: Identifying External Controls Components

Courtesy of MAZDA MOTORS CORP.

The transaxle external controls system consists of the following components:

• Selector lever cable and bracket
• Park range switch (part of the selector lever)
• Brake Shift Interlock Actuator (BSIA)
• Selector lever

The selector lever controls the transaxle gear selection through the selector lever cable. The cable detent and selector lever position locking is controlled by the selector lever knob.
