Steering Linkage - Exploded View

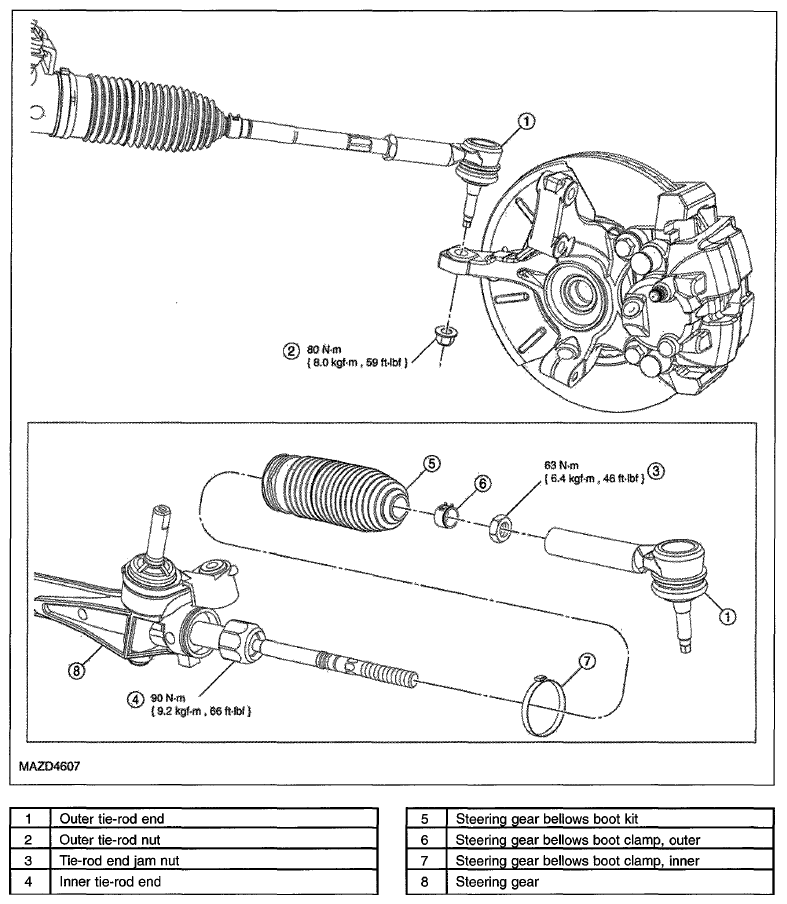

Fig 1: Steering Linkage Replacement Components With Torque Specifications
G06768166Courtesy of MAZDA MOTORS CORP.
  1. For additional information, see STEERING GEAR REMOVAL/INSTALLATION  , TIE ROD END OUTER REMOVAL/INSTALLATION  or TIE ROD END - INNER REMOVAL/INSTALLATION  .
