Component Test - Delayed Accessory Relay

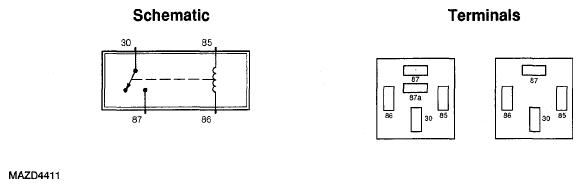

Fig 1: Delayed Accessory Relay Schematic And Terminals

Courtesy of MAZDA MOTORS CORP.

DELAYED ACCESSORY RELAY TERMINAL CHART

Circuit to Test	Connect Ohmmeter to Terminals	A Good Relay Will Indicate
Coil	85 and 86	50 - 100 Ω
Coil - Contact	30 and 87	Open Circuit
	86 and 30	Open Circuit
	86 and 87	Open Circuit
