Selector Lever Cable Adjustment

Place the selector lever in the (D) position.

Fig 1: Locating Selector Lever In (D) Position
Courtesy of MAZDA MOTORS CORP.
Disconnect the selector lever cable end from the manual control lever.

Fig 2: Disconnecting Selector Lever Cable End From Manual Control Lever
Courtesy of MAZDA MOTORS CORP.
Place the manual control lever in the (D) position.
1. Rotate the manual control lever counterclockwise to the PARK position.
2. Rotate the manual control lever clockwise 1 detent to the (D) position.

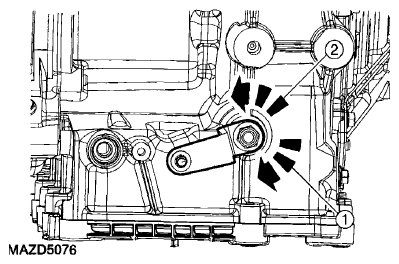

  Fig 3: Rotating Manual Control Lever Counterclockwise To PARK Position
  Courtesy of MAZDA MOTORS CORP.
Release the selector lever cable adjuster lock.
1. Pull out on the adjuster lock tabs.
2. Slide the lock over to unlock the selector lever cable.

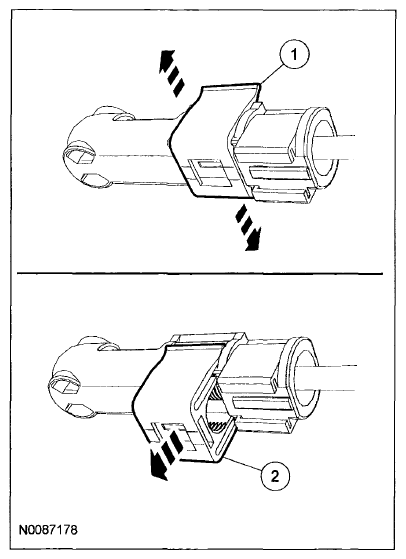

  Fig 4: Releasing Selector Lever Cable Adjuster Lock
  Courtesy of MAZDA MOTORS CORP.
Align the selector lever cable end to the manual control lever ball stud and install it with the adjuster unlocked.

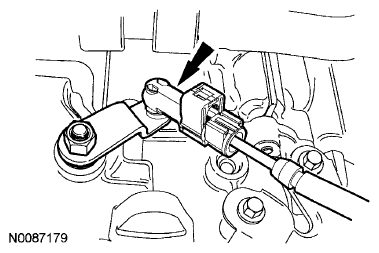

Fig 5: Locating Selector Lever Cable End To Manual Control Lever Ball Stud
Courtesy of MAZDA MOTORS CORP.
Slide the adjuster tab in place to lock the selector lever cable.

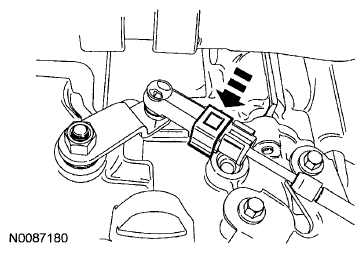

Fig 6: Sliding Adjuster Tab In Lock Selector Lever Cable
Courtesy of MAZDA MOTORS CORP.
