Steering Wheel Controls Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using a suitable tool, pry the steering wheel controls out of the steering wheel.
    NOTE:
    • It is not necessary to remove the driver air bag module during this procedure.
  2. Remove the steering wheel controls.
    NOTE:
    • Do not allow the electrical connector to fall back into the steering wheel.
  3. To install, reverse the removal procedure.

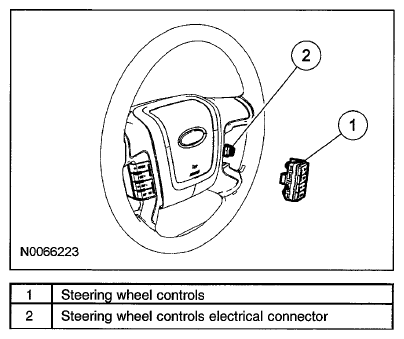

    Fig 1: Identifying Steering Wheel Controls And Steering Wheel Controls Electrical Connector
    G06765957Courtesy of MAZDA MOTORS CORP.
