Audio Input Jack Removal/Installation

WARNING: This page is about a different variant/trim than selected.

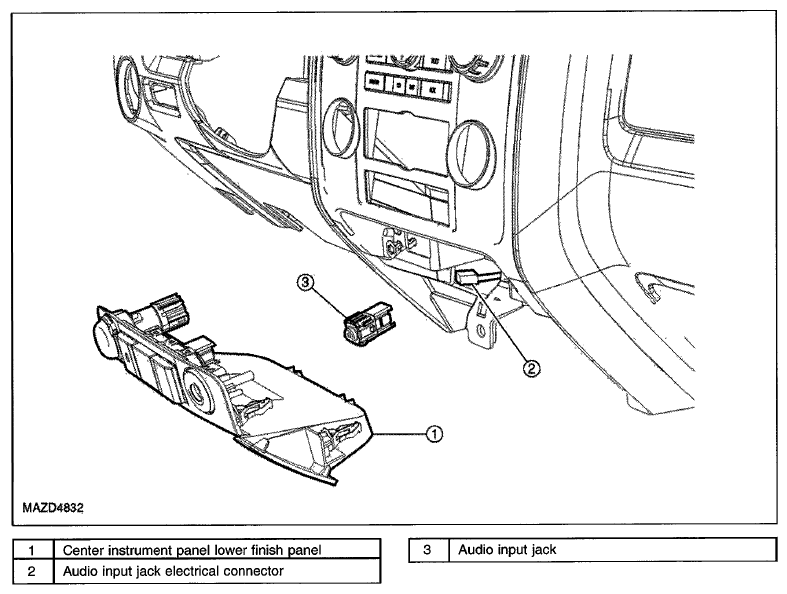

Fig 1: Identifying Audio Input Jack, Audio Input Jack Electrical Connector And Center Instrument Panel Lower Finish Panel

Courtesy of MAZDA MOTORS CORP.

Remove the center instrument panel lower finish panel.
- Disconnect the electrical connector(s).
  NOTE:
  - Pull straight back to disengage the clips.
Release the tabs and remove the audio input jack.

Fig 2: Locating Audio Input Jack Tabs
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
