Fuel Rail

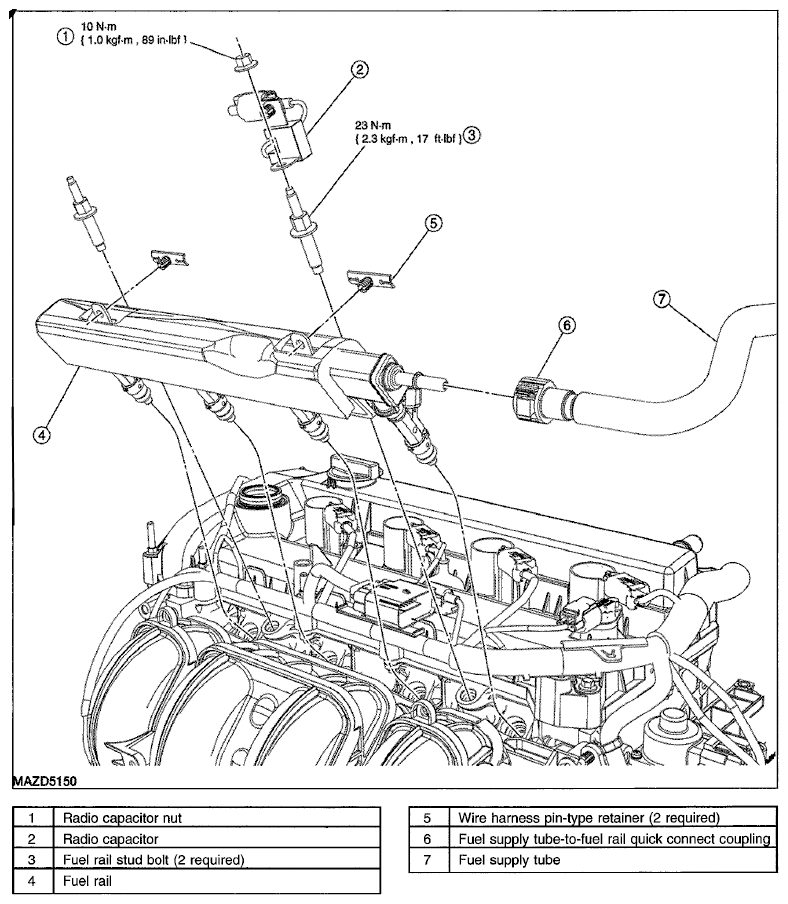

Fig 1: Exploded View Of Fuel Rail And Fuel Injector With Torque Specifications - 2.5L (1 Of 2)
G06767256Courtesy of MAZDA MOTORS CORP.

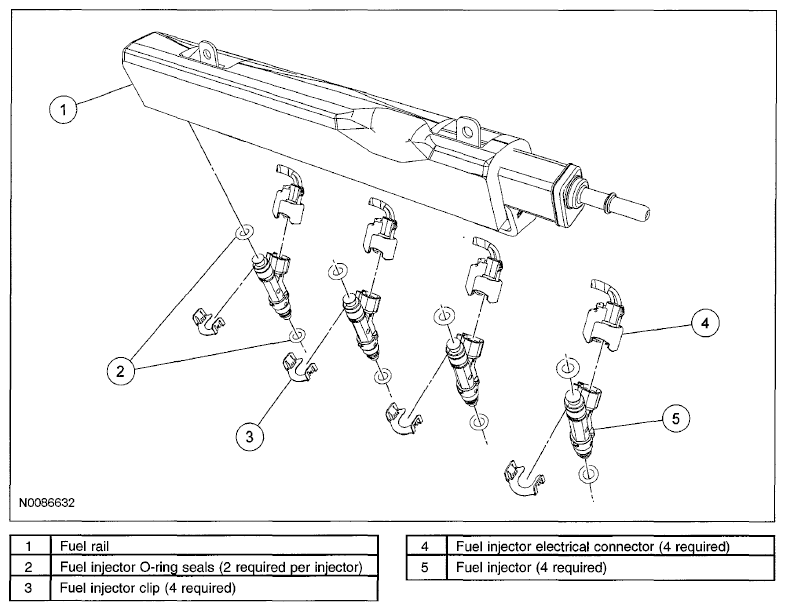

Fig 2: Exploded View Of Fuel Rail And Fuel Injector With Torque Specification - 2.5L (2 Of 2)
G06767257Courtesy of MAZDA MOTORS CORP.
  1. For additional information, see the FUEL RAIL AND FUEL INJECTOR REMOVAL/INSTALLATION - 2.5L  .
