Rear Door Window Regulator Removal/Installation

Remove the rear door trim panel. See REAR DOOR TRIM PANEL REMOVAL/INSTALLATION .
Remove the screw and the rear door trim panel bracket.

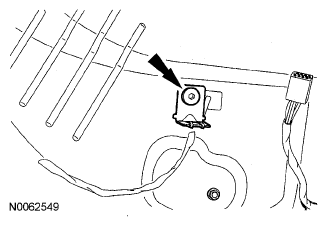

Fig 1: Locating Rear Door Trim Panel Bracket Screw
Courtesy of MAZDA MOTORS CORP.
Position the watershield aside.
Connect the window control switch electrical connector.
Using the window control switch, lower the rear door window glass to gain access to the rear door window glass screws.
Disconnect the window control switch electrical connector.
Remove the 2 rear door window glass screws.
- To install, tighten to 5 N.m {0.5 kgf.m, 44 in.lbf}.

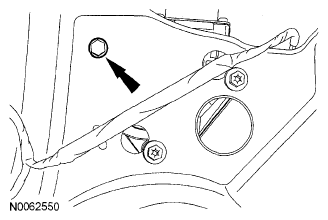

Fig 2: Locating Rear Door Window Glass Screws
Courtesy of MAZDA MOTORS CORP.
Support the rear door window glass in the full up position with tape.
Disconnect the rear door window motor electrical connector.
Remove the rear door window regulator and motor bolt.
- To install, tighten to 11 N.m {0.8 kgf.m, 97 in.lbf}.

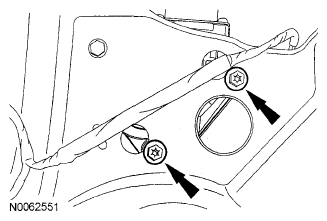

Fig 3: Locating Rear Door Window Regulator And Motor Bolt
Courtesy of MAZDA MOTORS CORP.
Loosen the 2 rear door window regulator and motor bolts.
- To install, tighten to 11 N.m {0.8 kgf.m, 97 in.lbf}.

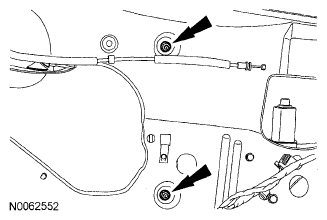

Fig 4: Locating Rear Door Window Regulator And Motor Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the 2 nuts and the rear door window regulator and motor.
- To install, tighten to 6 N.m {0.6 kgf.m, 53 in.lbf}.
Fig 5: Locating Rear Door Window Regulator And Motor Nuts
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
