Transaxle Fluid Cooler Bypass Valve Removal/Installation: Notes

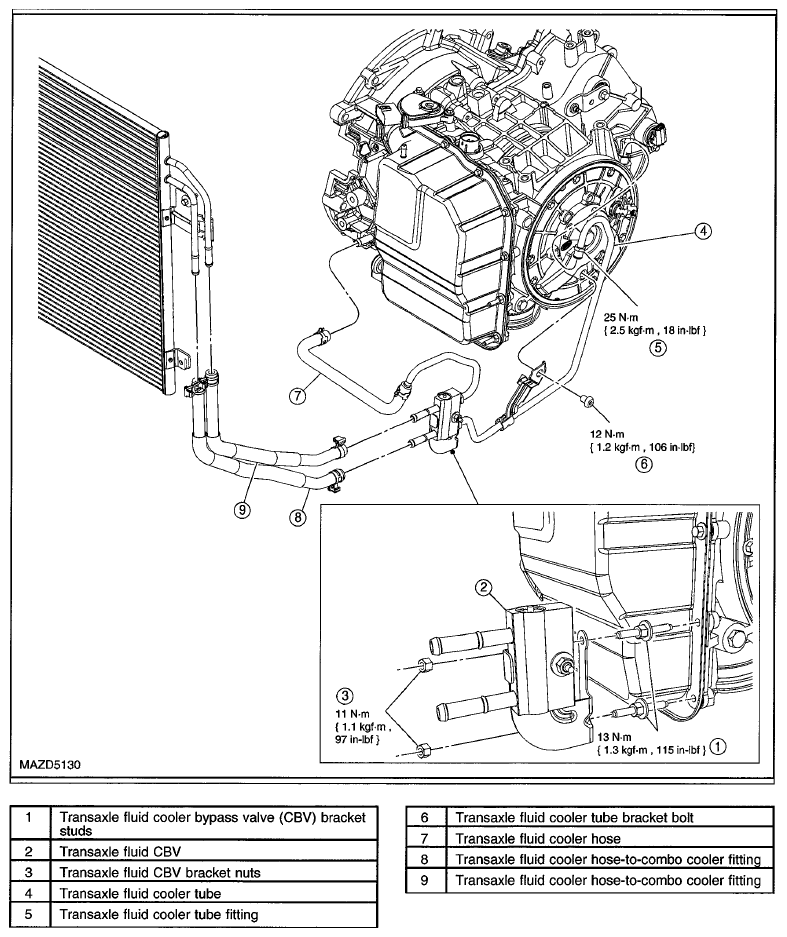

Fig 1: Transaxle Fluid Cooler Bypass Valve Replacement Components With Torque Specifications

G06768030

Courtesy of MAZDA MOTORS CORP.
