Steering Gear - Component View

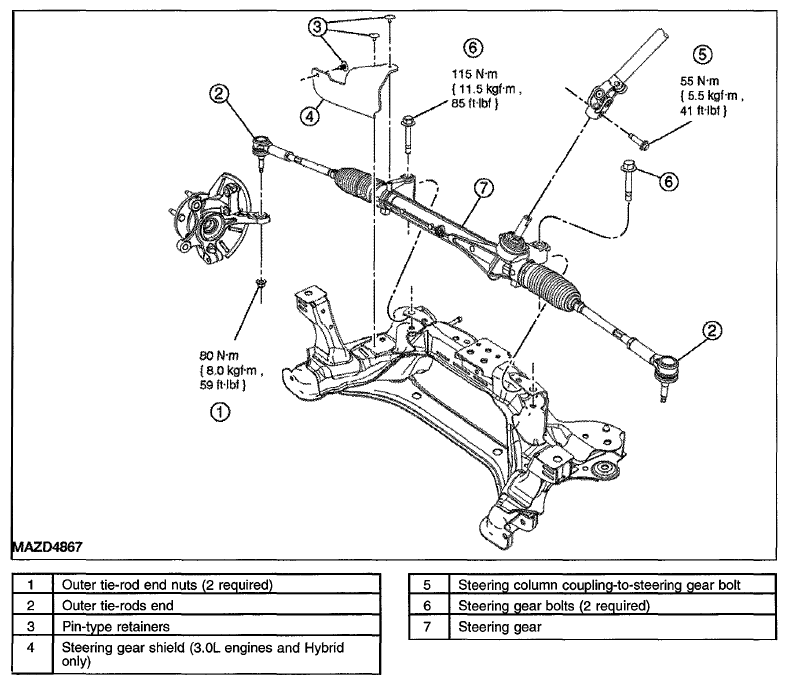

Fig 1: Steering Gear Replacement Components With Torque Specifications

G06768165

Courtesy of MAZDA MOTORS CORP.
