Fuel Tank Draining

WARNING:

Do not smoke, or carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING:

Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING:

When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.

WARNING:

Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING:

Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.

Release the fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE .
Disconnect the battery ground cable. See BATTERY DISCONNECT .
Remove the Fuel Pump (FP) module access

Fig 1: Locating Fuel Pump (FP) Module Access
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Clean the FP module connections, couplings, flange surfaces and the immediate surrounding area of any dirt or foreign material.
Disconnect the FP module electrical connector.

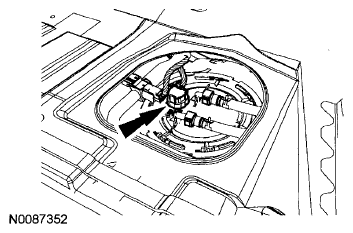

Fig 2: Locating FP Module Electrical Connector
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Place absorbent toweling in the immediate surrounding area in case of fuel spillage.
Disconnect the fuel tube-to-FP module quick connect coupling. See QUICK RELEASE COUPLING - DOUBLE LOCKING .

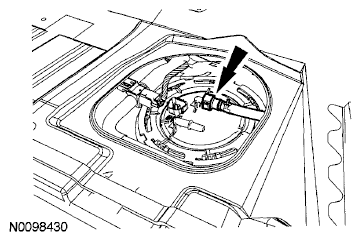

Fig 3: Locating Fuel Tube-To-FP Module Quick Connect Coupling
Courtesy of MAZDA MOTORS CORP.
Disconnect the fuel tank filler pipe recirculation tube-to-FP module quick connecting coupling. See QUICK RELEASE COUPLING - DOUBLE LOCKING .

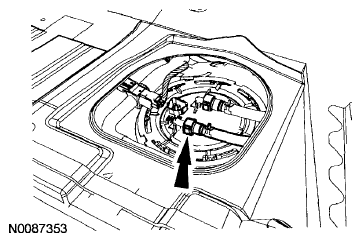

Fig 4: Locating Fuel Tank Filler Pipe Recirculation Tube-To-FP Module Quick Connecting Coupling
Courtesy of MAZDA MOTORS CORP.
Connect the Fuel Storage Tanker to the fuel tank filler pipe recirculation tube port on the FP module and remove approximately one-fourth of the fuel (from a completely full tank), lowering the fuel level below the FP module mounting flange.

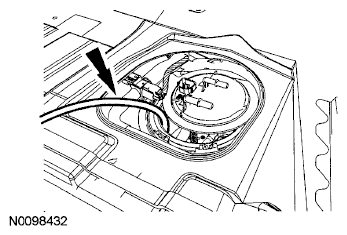

Fig 5: Locating Fuel Storage Tanker To Fuel Tank Filler Pipe Recirculation Tube Port On FP Module
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Carefully install the Fuel Tank Sender Unit Wrench to avoid damaging the Fuel Pump (FP) module when removing the lock ring.
NOTE:
- When installing the FP module, install a new lock ring and O-ring seal.
Install the Fuel Tank Sender Unit Wrench and remove the FP module lock ring.

Fig 6: Installing Fuel Tank Sender Unit Wrench
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- The Fuel Pump (FP) module must be handled carefully to avoid damage to the float arm and filter.
Position the FP module aside, insert the tube from the Fuel Storage Tanker unto the FP module aperture and remove as much fuel as possible from the fuel tank.

Fig 7: Locating Tube From Fuel Storage Tanker To FP Module Aperture
Courtesy of MAZDA MOTORS CORP.
