Front Wheel Speed Sensor Ring

Removal

1. Remove the front halfshaft. See FRONT DRIVE HALFSHAFTS REMOVAL/INSTALLATION .
2. Using a suitable driver, remove the ABS wheel speed sensor ring.

   Installation

3. Install the new ABS wheel speed sensor ring and the tools on the halfshaft as shown in the previous illustration.

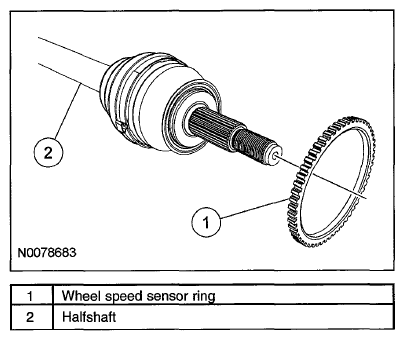

   Fig 1: Identifying Wheel Speed Sensor Ring And Halfshaft

   Courtesy of MAZDA MOTORS CORP.

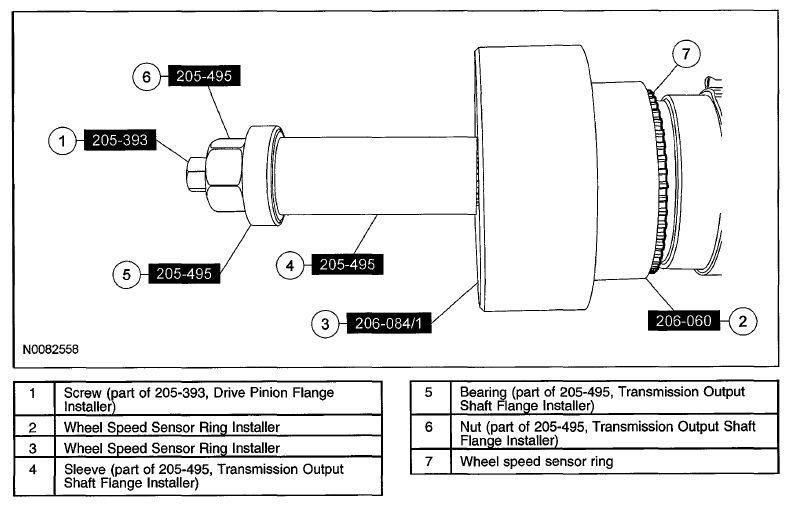

   Fig 2: Installing ABS Wheel Speed Sensor Ring And Tools On Halfshaft

   Courtesy of MAZDA MOTORS CORP.
4. Install the ABS wheel speed sensor ring to the dimension as shown in illustration.

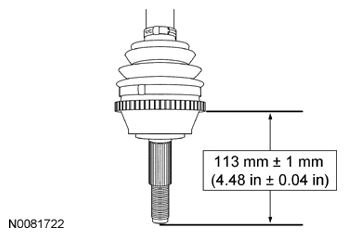

   Fig 3: Identifying ABS Wheel Speed Sensor Ring To Dimension

   Courtesy of MAZDA MOTORS CORP.
