Instrument Panel - Exploded View
Instrument Panel - Exploded View

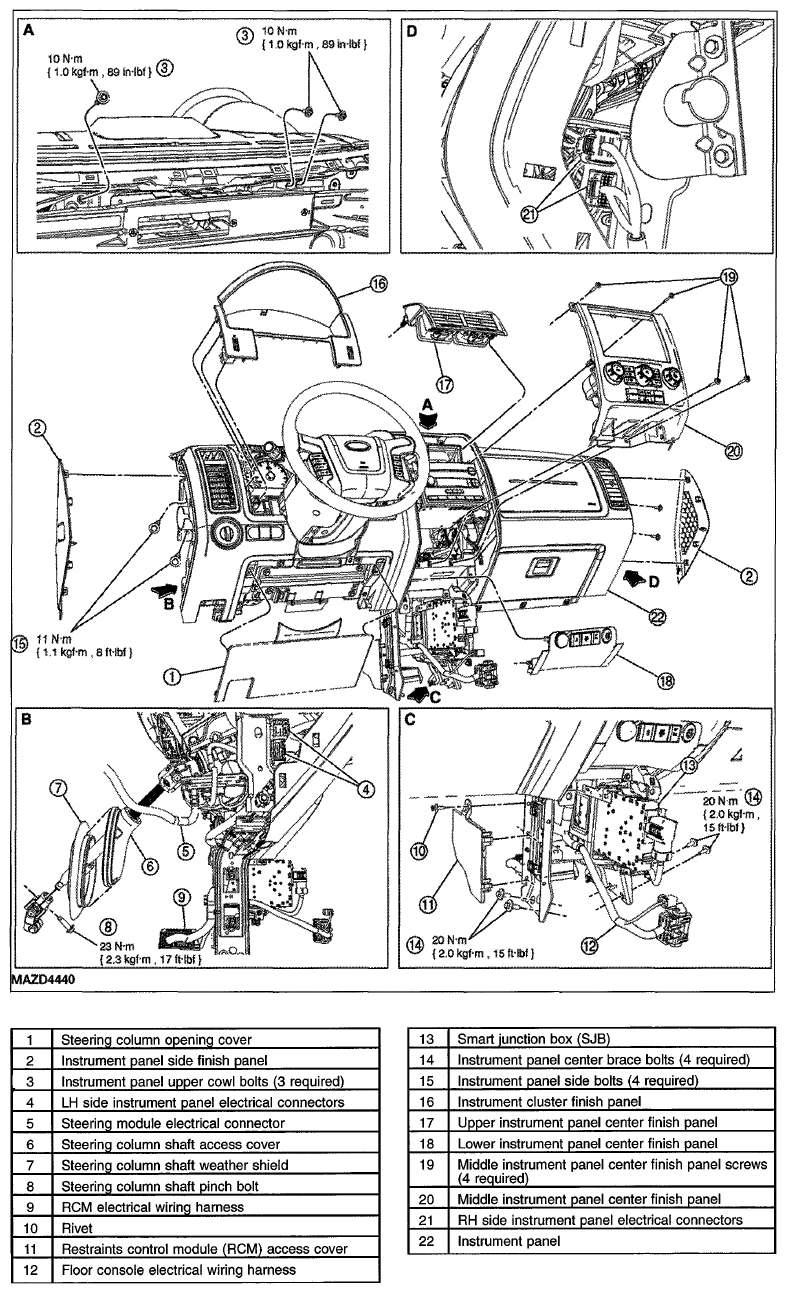

Fig 1: Exploded View Of Instrument Panel With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
For additional information, see the appropriate procedures.
Courtesy of MAZDA MOTORS CORP.
