Front Display Interface Module (FDIM) Removal/Installation

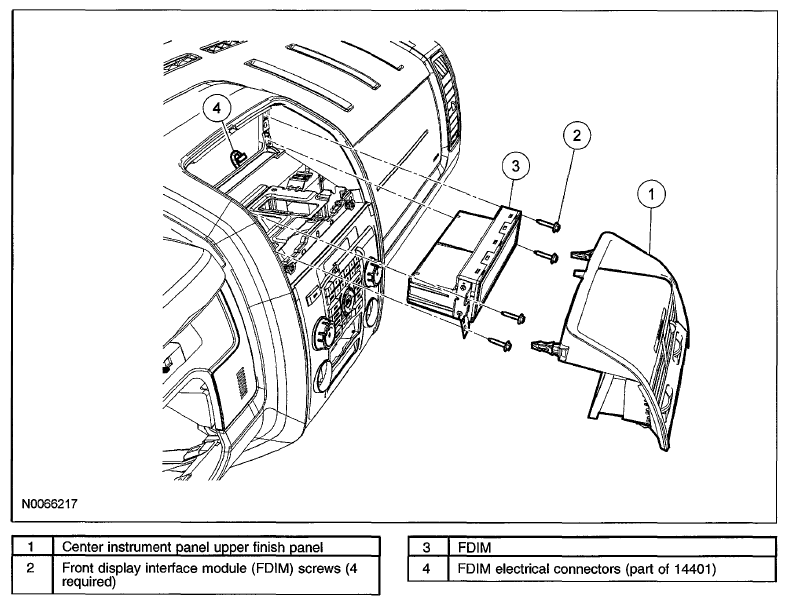

Fig 1: Exploded View Of Front Display Interface Module (FDIM)

Courtesy of MAZDA MOTORS CORP.

1. Remove the center instrument panel upper finish panel by pulling straight back.
2. Remove the 4 front display interface module (FDIM) screws.
3. Remove the FDIM.
   • Disconnect the electrical connector.
4. To install, reverse the removal procedure.
