Quick Diagnostic Chart [13B-MSP]
Quick Diagnostic Chart [13B-MSP]

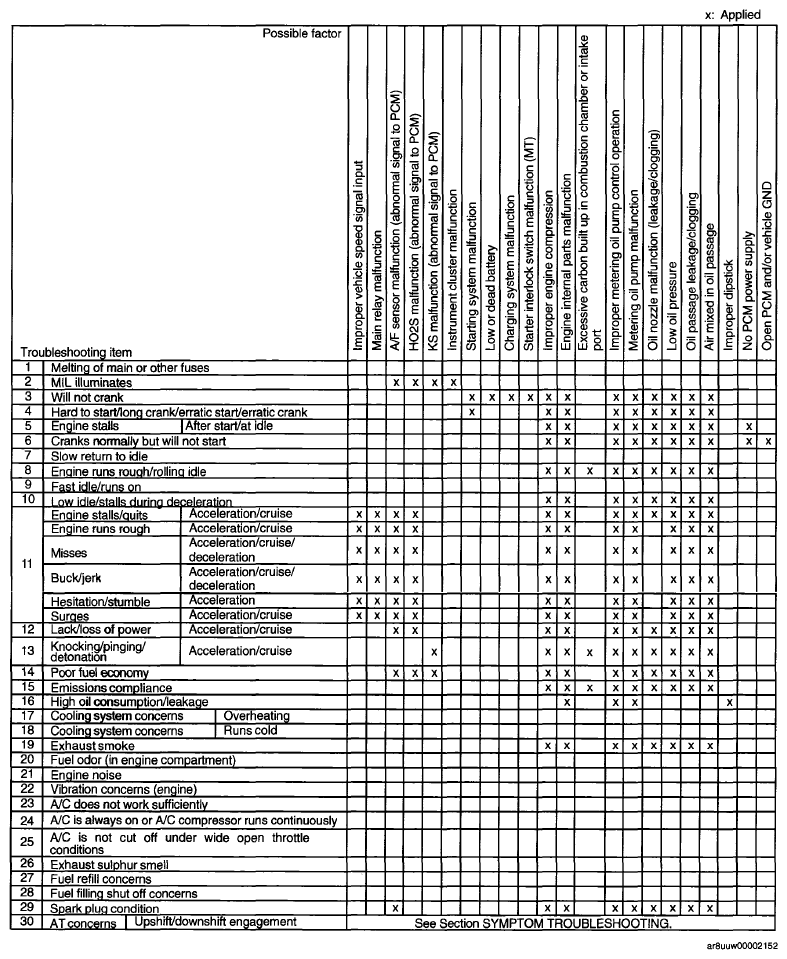

Fig 1: Quick Diagnostic Chart [13B-MSP] (1 Of 6)
Courtesy of MAZDA MOTORS CORP.

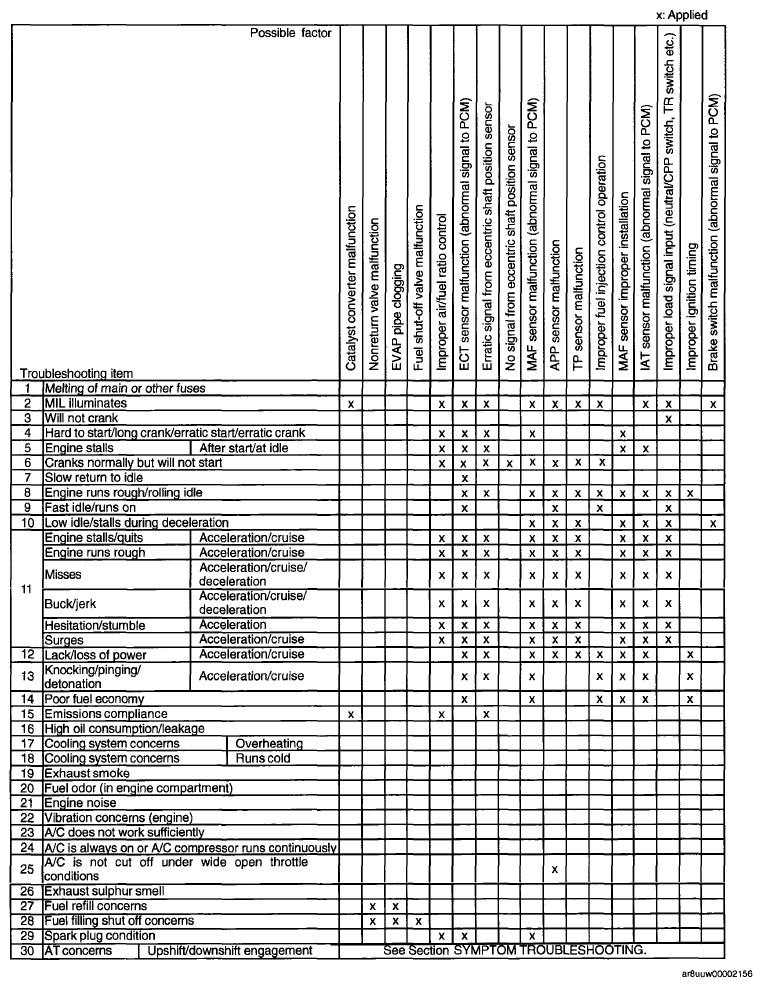

Fig 2: Quick Diagnostic Chart [13B-MSP] (2 Of 6)
Courtesy of MAZDA MOTORS CORP.

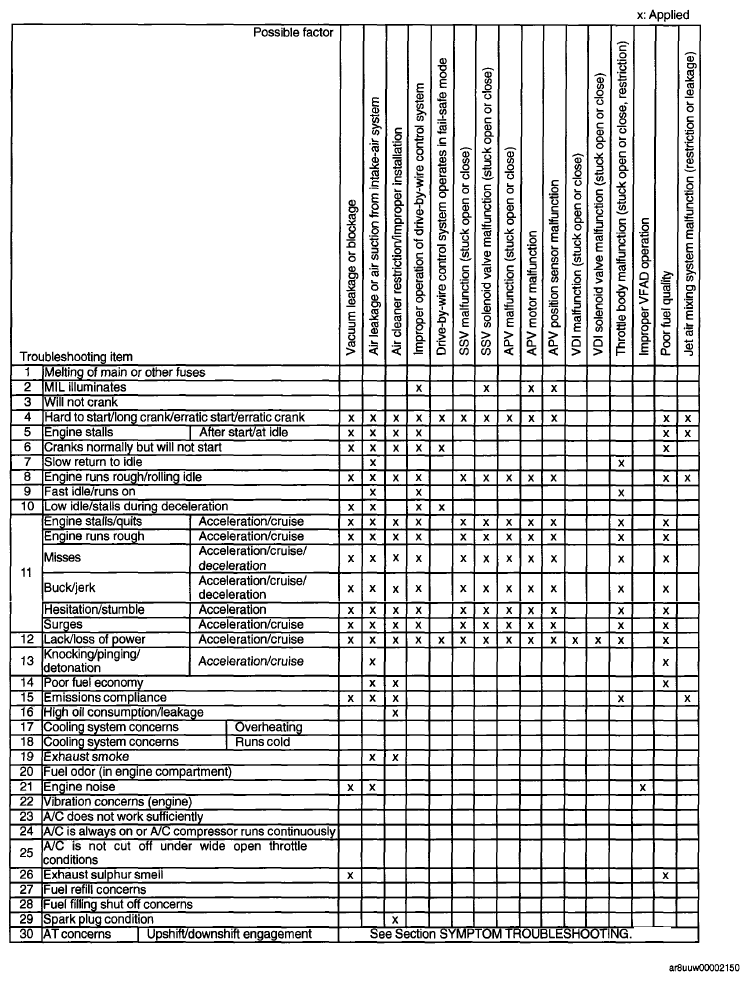

Fig 3: Quick Diagnostic Chart [13B-MSP] (3 Of 6)
Courtesy of MAZDA MOTORS CORP.

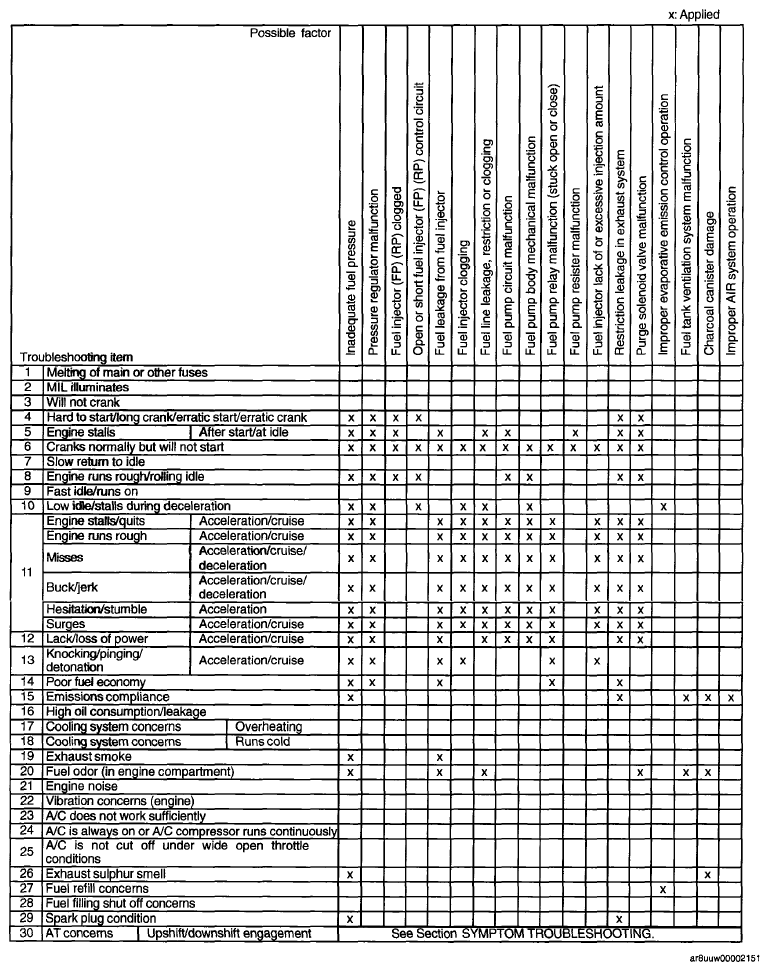

Fig 4: Quick Diagnostic Chart [13B-MSP] (4 Of 6)
Courtesy of MAZDA MOTORS CORP.

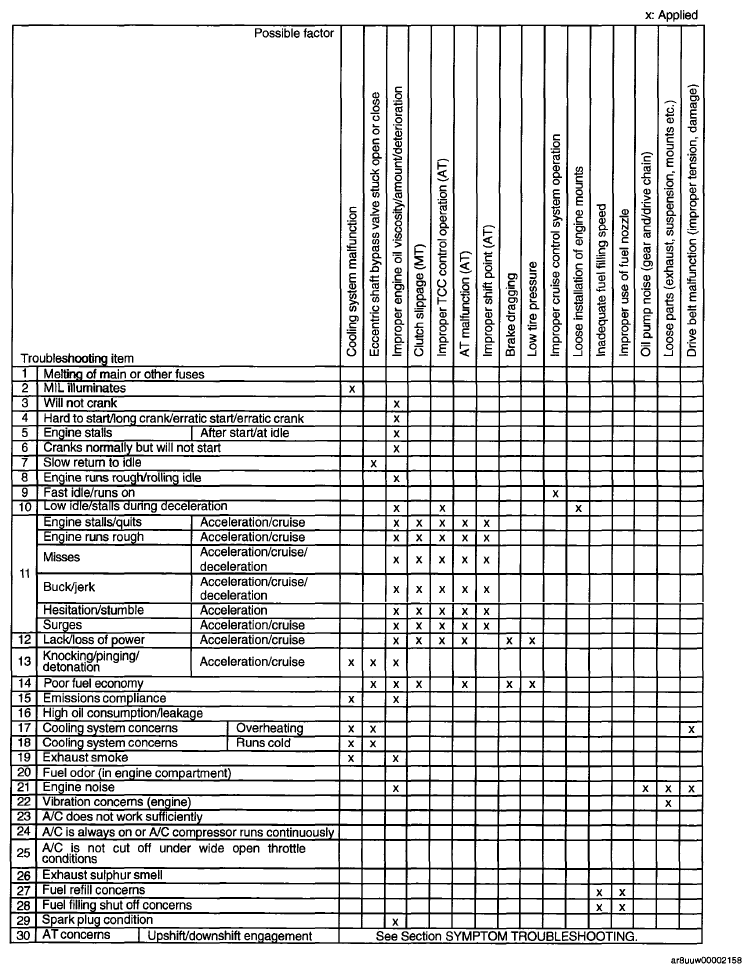

Fig 5: Quick Diagnostic Chart [13B-MSP] (5 Of 6)
Courtesy of MAZDA MOTORS CORP.

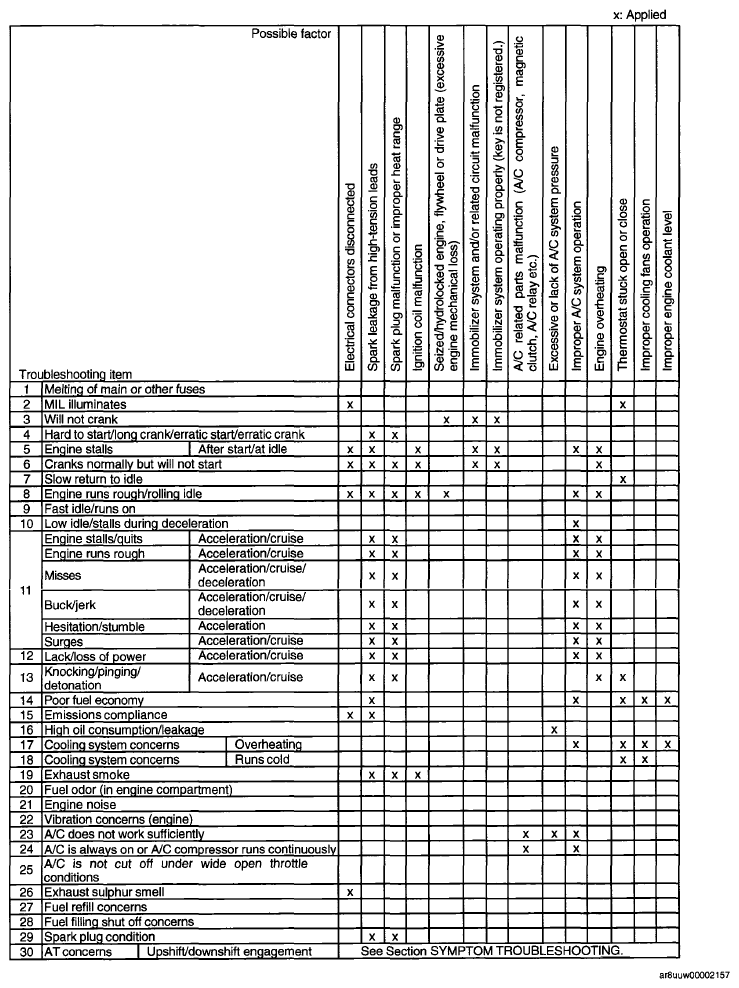

Fig 6: Quick Diagnostic Chart [13B-MSP] (6 Of 6)
Courtesy of MAZDA MOTORS CORP.
