Ignition Coil Removal/Installation [13B-MSP]

1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP] .)
2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] .)
3. Remove the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] .)
4. Remove the air hose (air cleaner to throttle body). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP] .)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

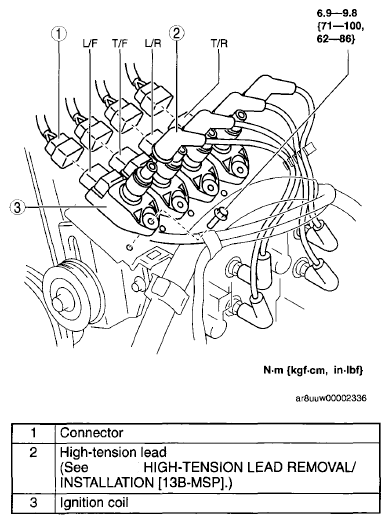

Fig 1: Ignition Coil Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
