General Information: Terminals: Inspection: Notes

Pull lightly on individual wires to verify that they are secured in the terminal.

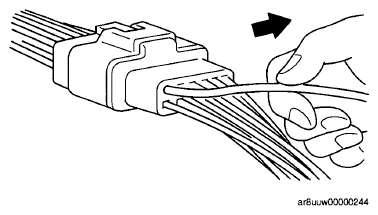

Fig 1: Pulling Connector Wires
Courtesy of MAZDA MOTORS CORP.
