Ignition System Location Index [13B-MSP]

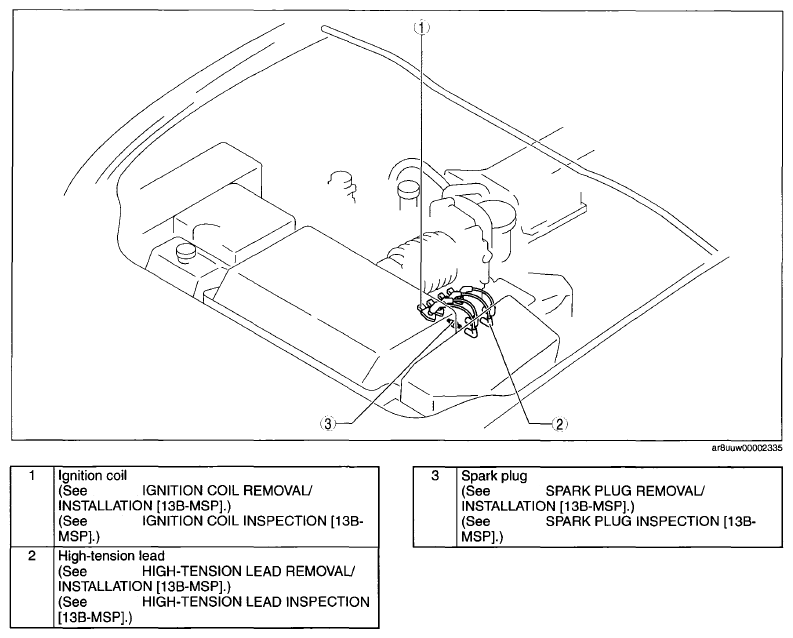

Fig 1: Identifying Ignition System Components Location

G05981089

Courtesy of MAZDA MOTORS CORP.
