Keyless Antenna Removal/Installation: Trunk

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
  2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION )
  3. Remove the nuts.
  4. Disconnect the connector, then remove the keyless antenna.
  5. Install in the reverse order of removal.

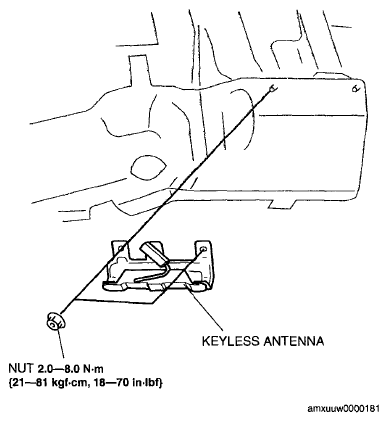

Fig 1: Keyless Antenna And Nut With Torque Specifications
G06149571Courtesy of MAZDA MOTORS CORP.
