CX-7 s Touring, 2.3 L, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System L3 With TC] (1 Of 5)
>>
Monitoring System And Control System Device Relationship Chart
Monitoring System And Control System Device Relationship Chart

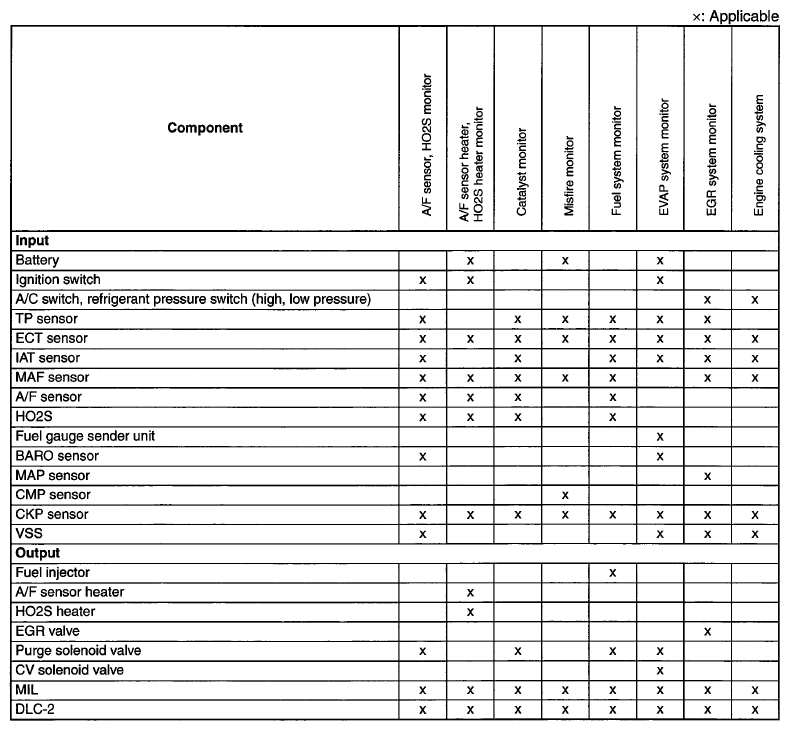

Fig 1: Monitoring System And Control System Device Relationship Chart (L3 With TC)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
