Steering Wheel And Column Removal/Installation: Notes

WARNING:

Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SYSTEM WARNINGS before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)

Remove in the order indicated in the table.
Install in the reverse order of removal.
If the steering lock component of a vehicle equipped with the advanced keyless system is replaced, perform programming for the immobilizer system related parts. (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND START SYSTEM] .)

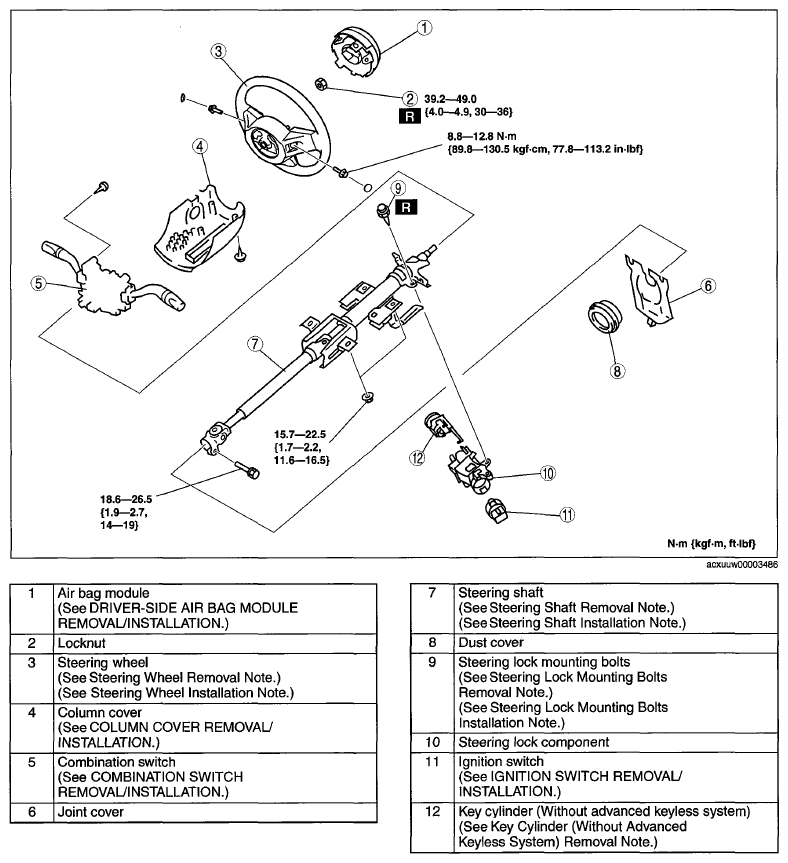

Fig 1: Exploded View Of Steering Wheel And Column With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
