Electrical Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Right Rear Of Vehicle
Courtesy of MAZDA MOTORS CORP.
Fig 2: Right Rear Of Vehicle
Courtesy of MAZDA MOTORS CORP.
Fig 3: Left Rear Of Vehicle
Courtesy of MAZDA MOTORS CORP.
Fig 4: Right Rear Of Vehicle
Courtesy of MAZDA MOTORS CORP.
Fig 5: Left Rear Of Vehicle
Courtesy of MAZDA MOTORS CORP.
Fig 6: Left Rear Of Vehicle
Courtesy of MAZDA MOTORS CORP.
Fig 7: Right Side Of Vehicle
Courtesy of MAZDA MOTORS CORP.
Fig 8: Right Side Of Vehicle
Courtesy of MAZDA MOTORS CORP.
Fig 9: Center Console
Courtesy of MAZDA MOTORS CORP.
Fig 10: Under Driver's Seat
Courtesy of MAZDA MOTORS CORP.
Fig 11: Under Driver's Seat
Courtesy of MAZDA MOTORS CORP.
Fig 12: Left Kick Panel
Courtesy of MAZDA MOTORS CORP.
Fig 13: Left Side Of Vehicle
Courtesy of MAZDA MOTORS CORP.
Fig 14: Left Side Of Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 15: Left Side Of Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 16: Left Side Of Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 17: Rear Of Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 18: Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 19: Rear Of Engine
Courtesy of MAZDA MOTORS CORP.
Fig 20: Left Front Of Engine
Courtesy of MAZDA MOTORS CORP.
Fig 21: Main Fuse Block
Courtesy of MAZDA MOTORS CORP.
Fig 22: Center Floor Console
Courtesy of MAZDA MOTORS CORP.
Fig 23: Left Side Of Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 24: Left Side Of Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 25: Left Side Of Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 26: Right Front Of Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 27: Right Front Of Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 28: Right Front Of Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 29: Right Kick Panel
Courtesy of MAZDA MOTORS CORP.
Fig 30: Left Side Of Dash
Courtesy of MAZDA MOTORS CORP.
Fig 31: Center Of Dash
Courtesy of MAZDA MOTORS CORP.
Fig 32: Center Of Dash
Courtesy of MAZDA MOTORS CORP.
Fig 33: Center Console
Courtesy of MAZDA MOTORS CORP.
Fig 34: Left Side Of Dash
Courtesy of MAZDA MOTORS CORP.
Fig 35: Left Side Of Dash
Courtesy of MAZDA MOTORS CORP.
Fig 36: Left Side Of Dash
Courtesy of MAZDA MOTORS CORP.
Fig 37: Left Side Of Dash
Courtesy of MAZDA MOTORS CORP.
Fig 38: Left Kick Panel
Courtesy of MAZDA MOTORS CORP.
Fig 39: Left Kick Panel
Courtesy of MAZDA MOTORS CORP.
Fig 40: Left Kick Panel
Courtesy of MAZDA MOTORS CORP.
Fig 41: Left Kick Panel
Courtesy of MAZDA MOTORS CORP.
Fig 42: Right Side Of Dash
Courtesy of MAZDA MOTORS CORP.
Fig 43: Right Kick Panel
Courtesy of MAZDA MOTORS CORP.
Fig 44: Right Kick Panel
Courtesy of MAZDA MOTORS CORP.
Fig 45: Left Side Of Dash
Courtesy of MAZDA MOTORS CORP.
Fig 46: Left Kick Panel
Courtesy of MAZDA MOTORS CORP.
Fig 47: Left Kick Panel
Courtesy of MAZDA MOTORS CORP.

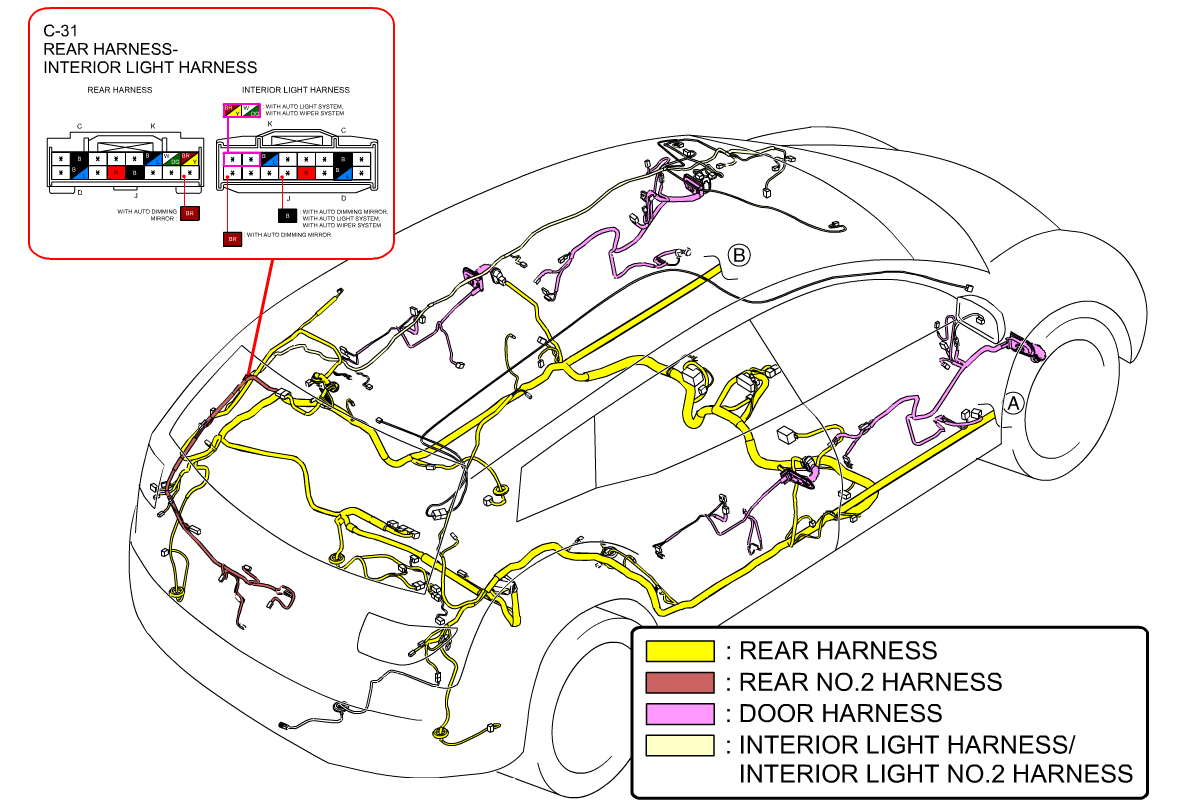

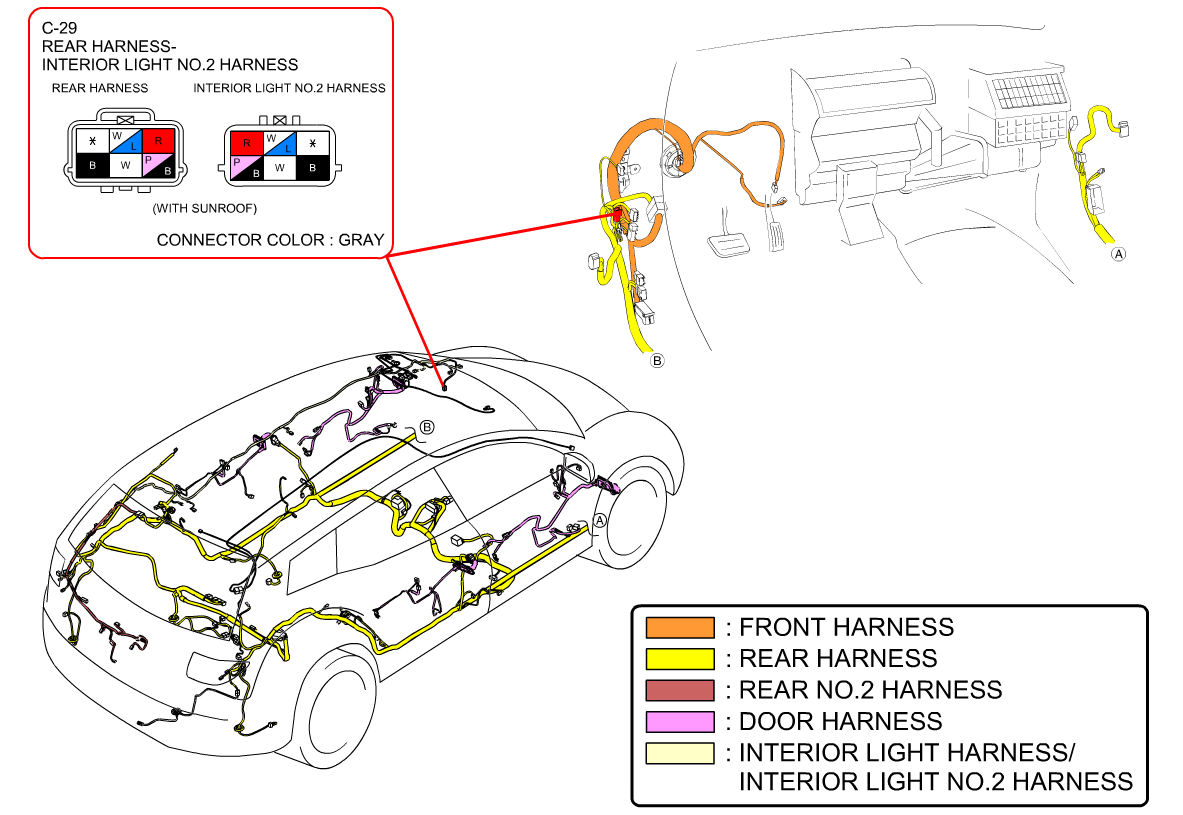

Fig 48: Body Overview
Courtesy of MAZDA MOTORS CORP.

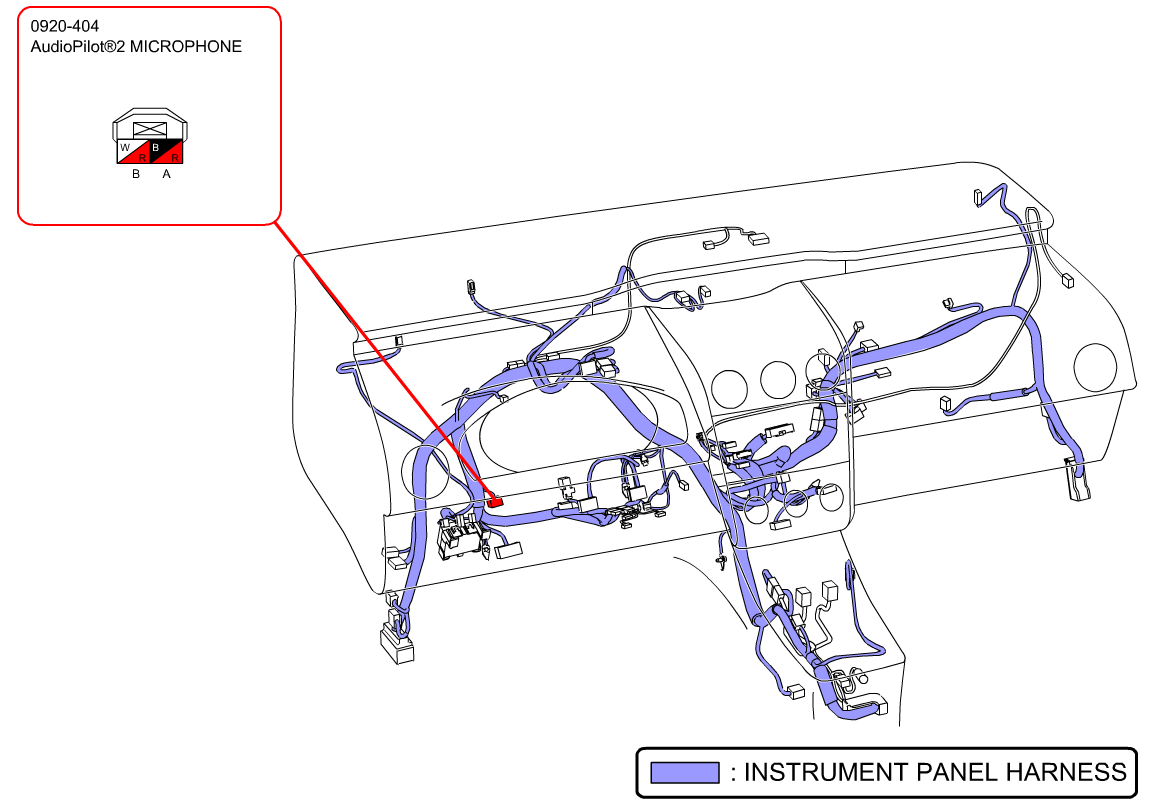

Fig 49: Upper Dash
Courtesy of MAZDA MOTORS CORP.

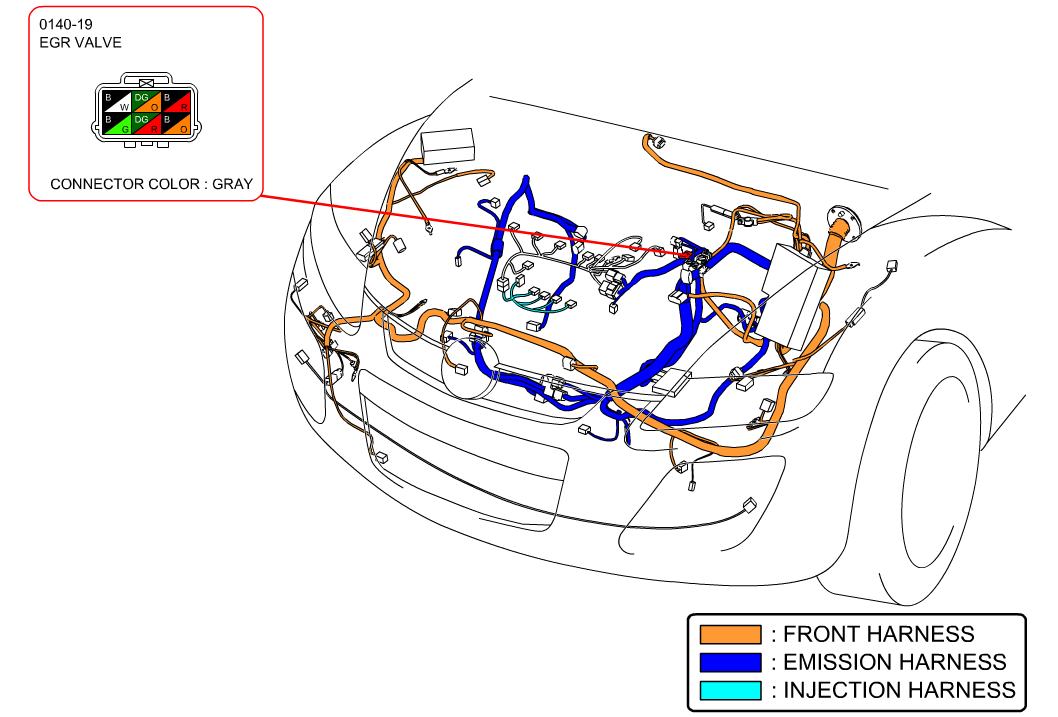

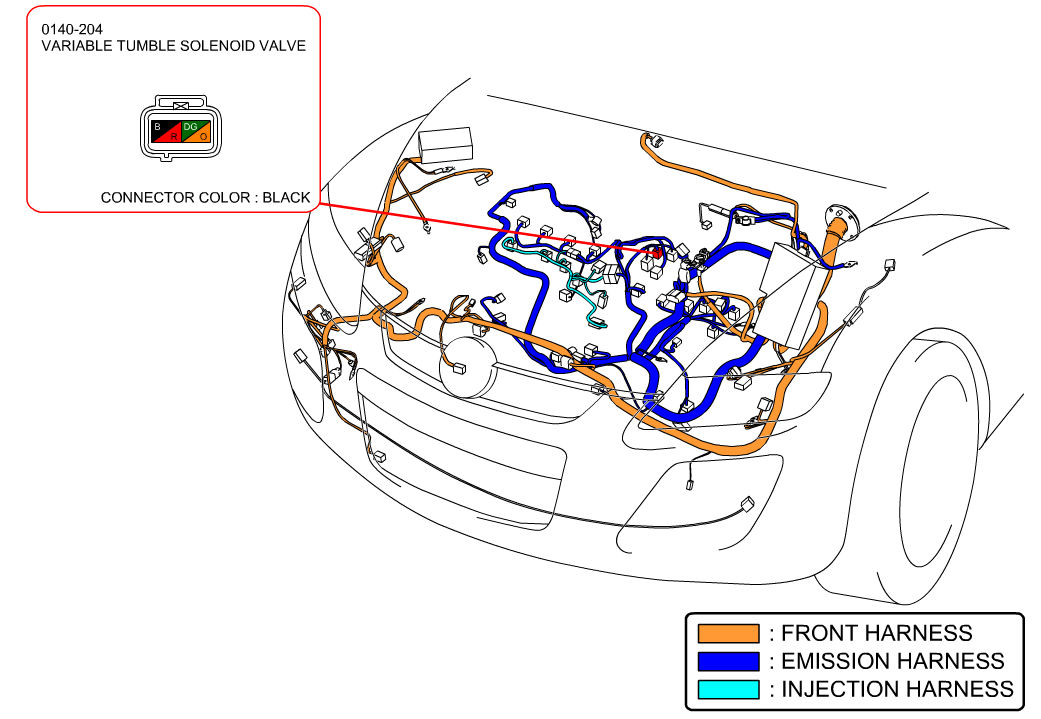

Fig 50: Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 51: Body Overview
Courtesy of MAZDA MOTORS CORP.

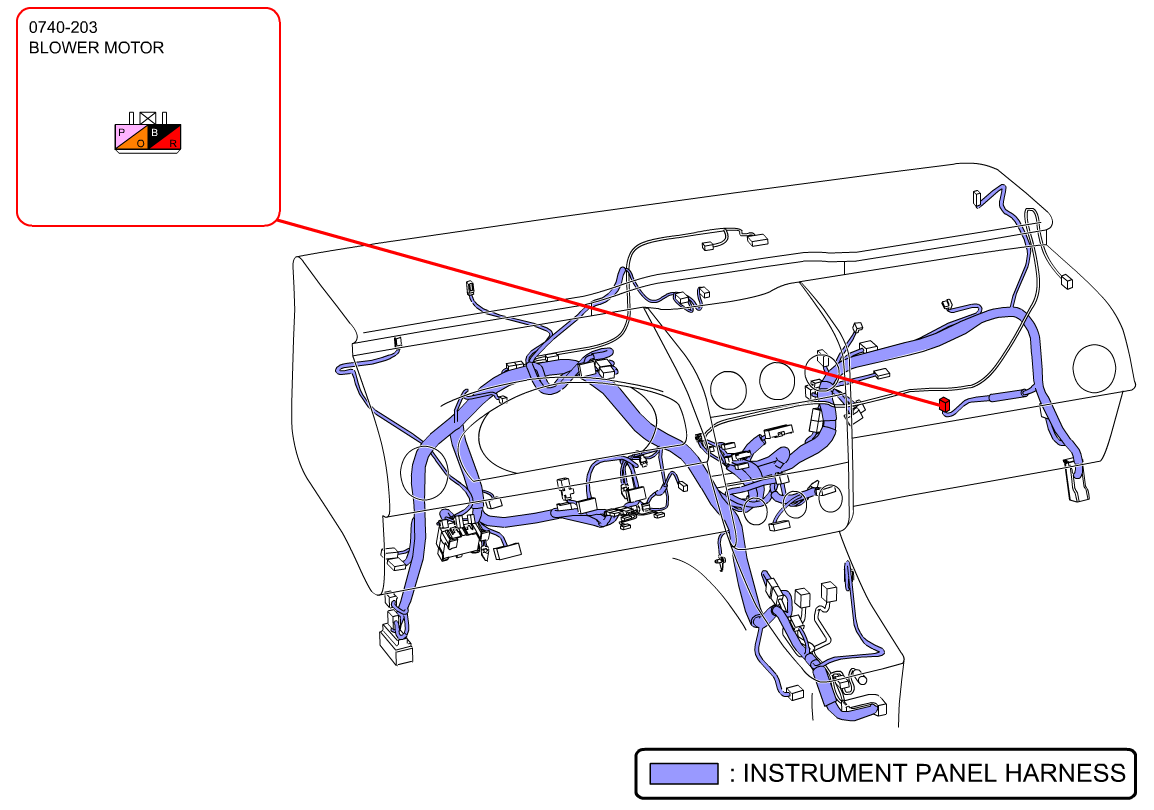

Fig 52: Upper Dash
Courtesy of MAZDA MOTORS CORP.
Fig 53: Upper Dash
Courtesy of MAZDA MOTORS CORP.

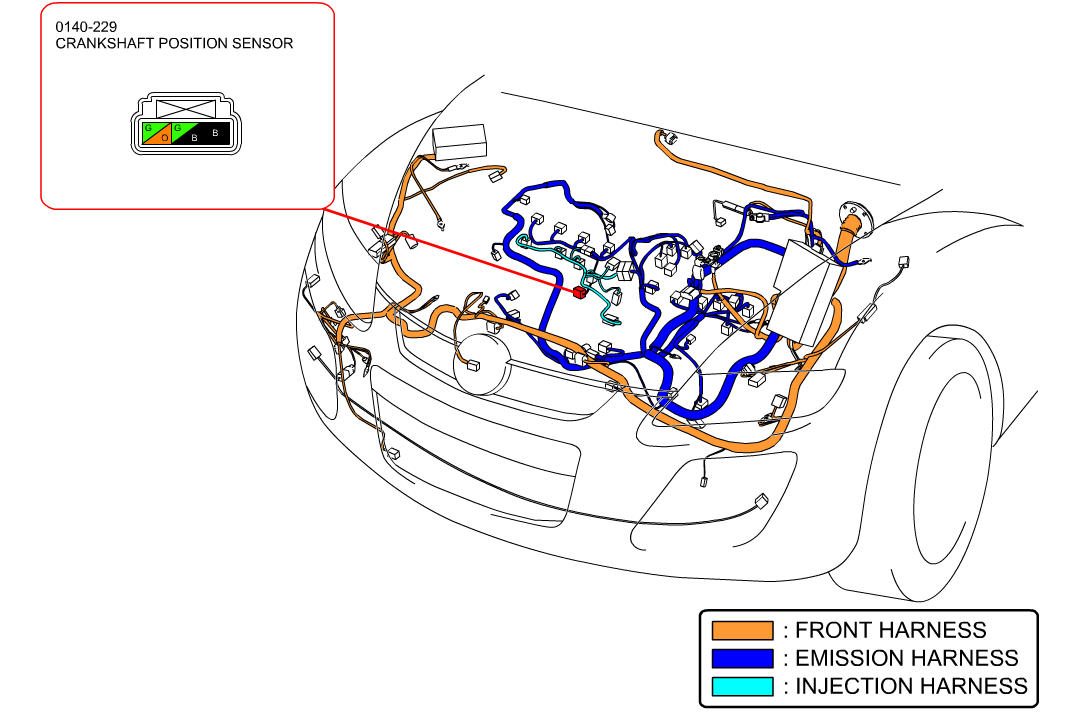

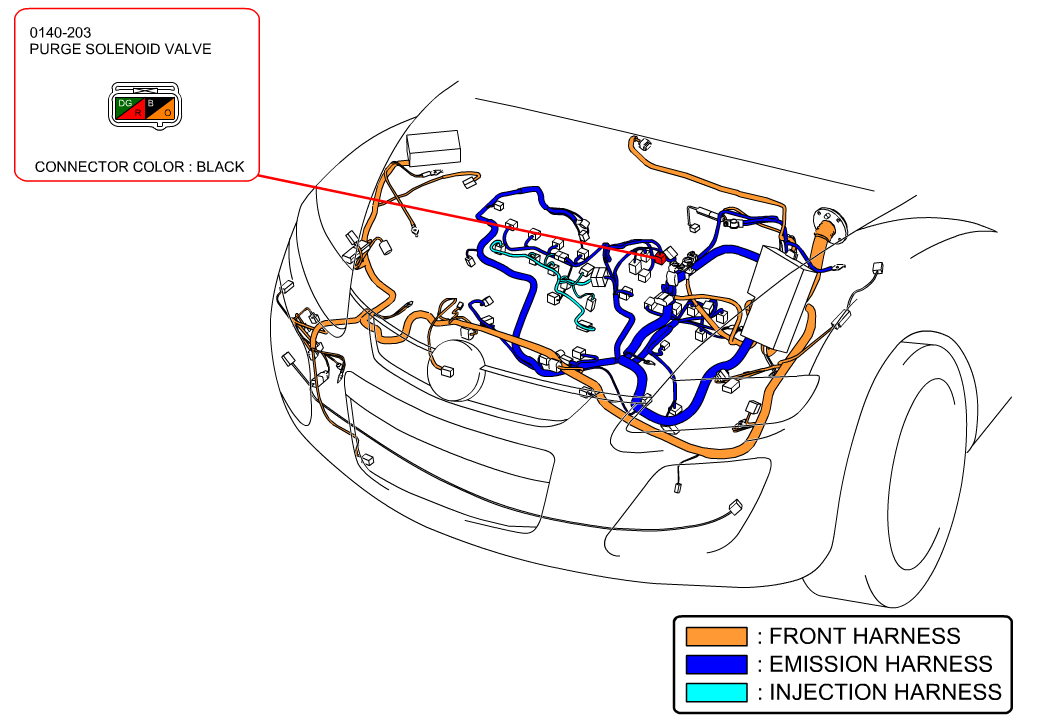

Fig 54: Engine Compartment
Courtesy of MAZDA MOTORS CORP.

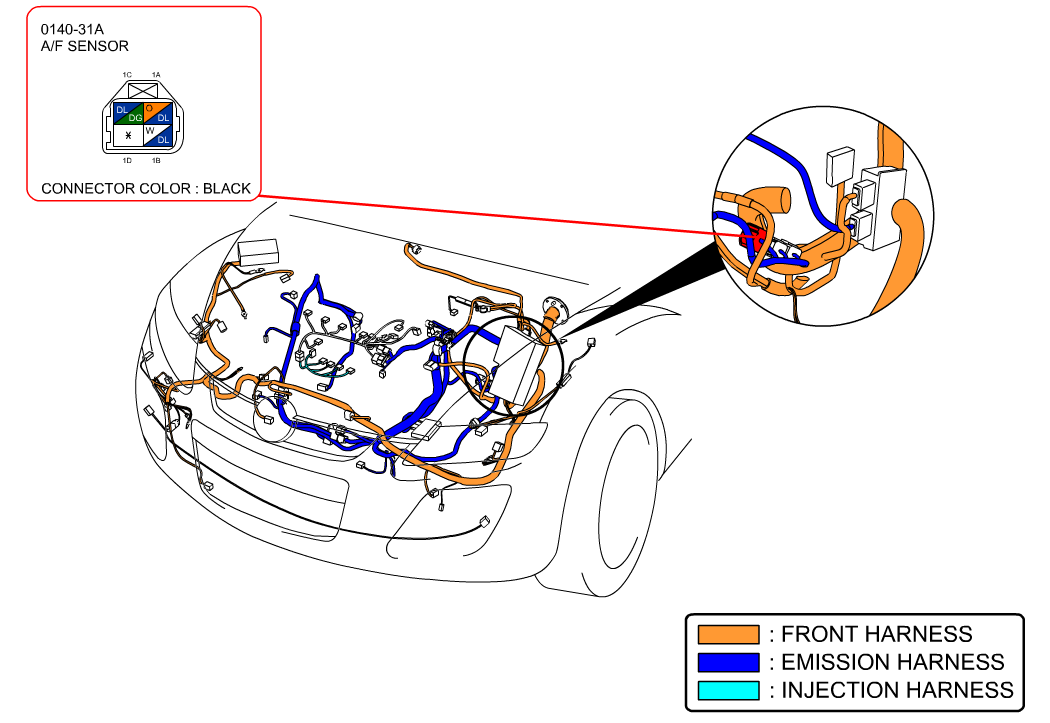

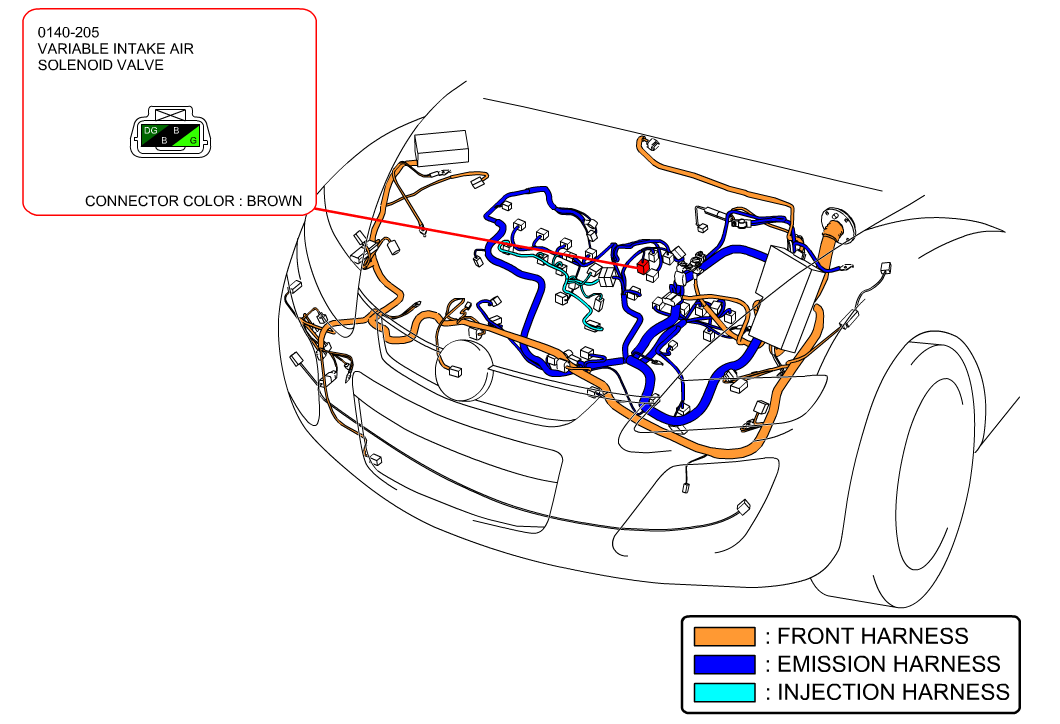

Fig 55: Engine Compartment
Courtesy of MAZDA MOTORS CORP.

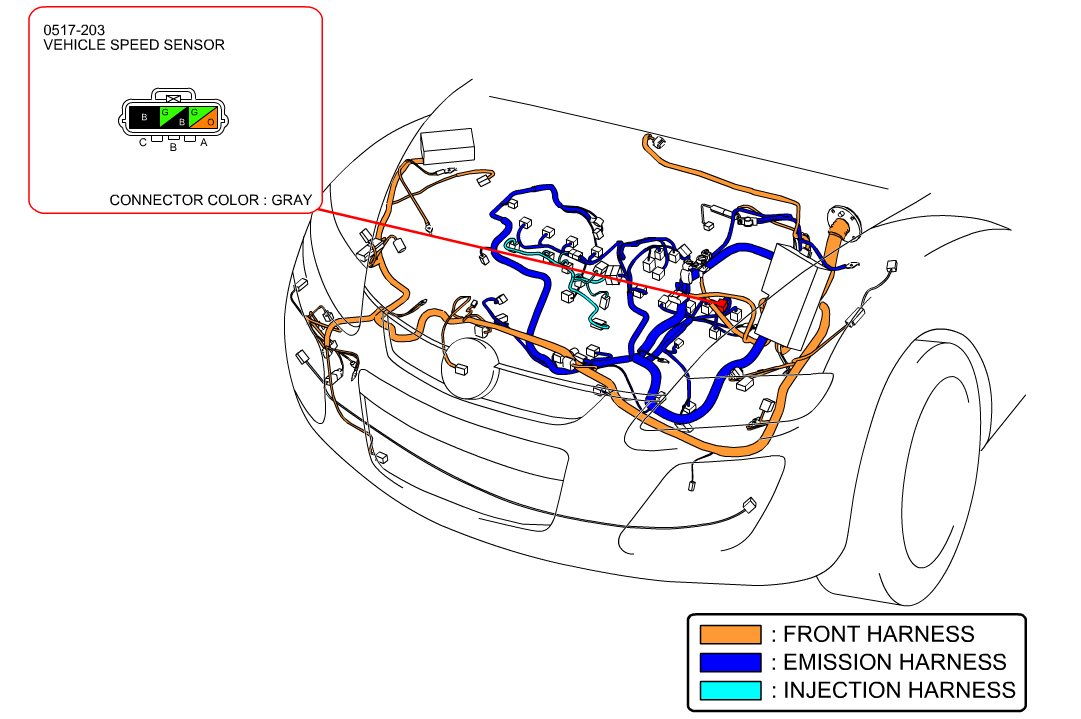

Fig 56: Engine Compartment
Courtesy of MAZDA MOTORS CORP.

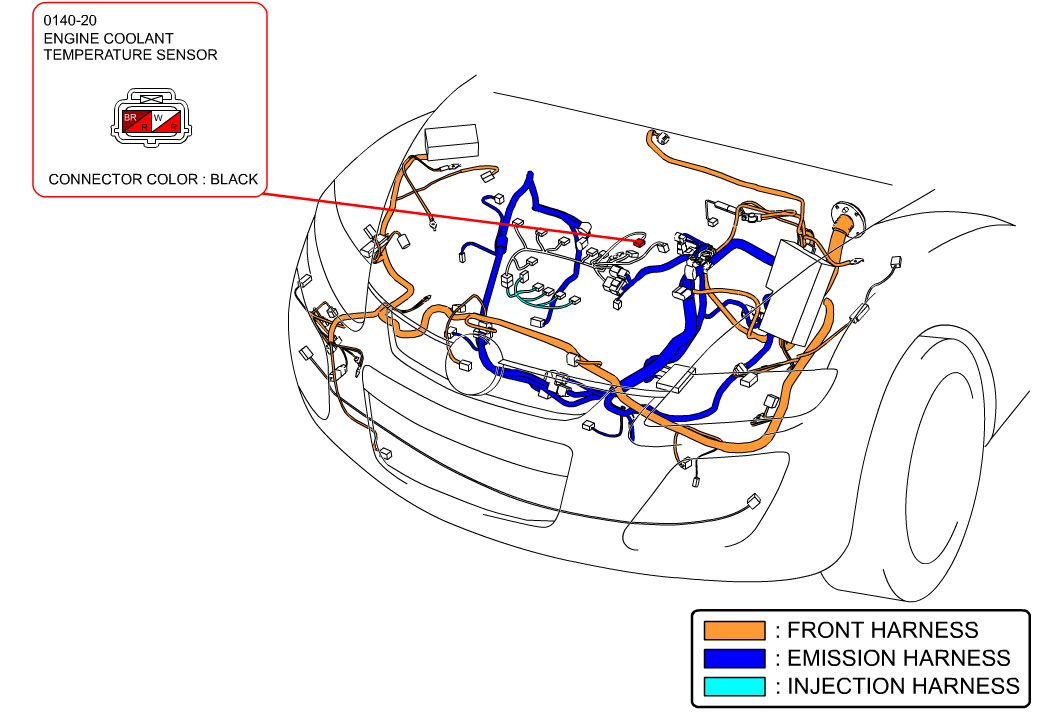

Fig 57: Engine Compartment (2.3L)
Courtesy of MAZDA MOTORS CORP.
Fig 58: Engine Compartment (2.3L)
Courtesy of MAZDA MOTORS CORP.
Fig 59: Body Overview
Courtesy of MAZDA MOTORS CORP.
Fig 60: Engine Compartment (2.3L)
Courtesy of MAZDA MOTORS CORP.
Fig 61: Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 62: Upper Dash
Courtesy of MAZDA MOTORS CORP.
Fig 63: Body Overview
Courtesy of MAZDA MOTORS CORP.
Fig 64: Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 65: Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 66: Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 67: Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 68: Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 69: Body Overview
Courtesy of MAZDA MOTORS CORP.
Fig 70: Lower Dash
Courtesy of MAZDA MOTORS CORP.

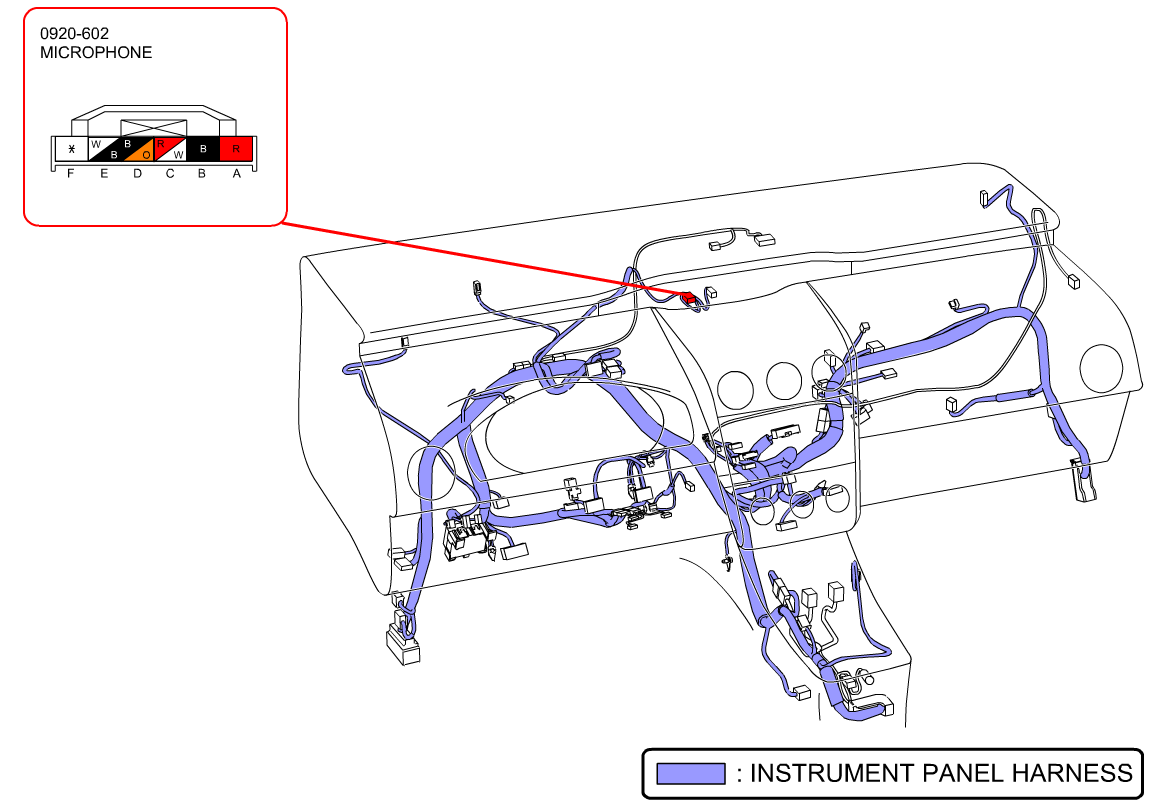

Fig 71: Upper Dash
Courtesy of MAZDA MOTORS CORP.

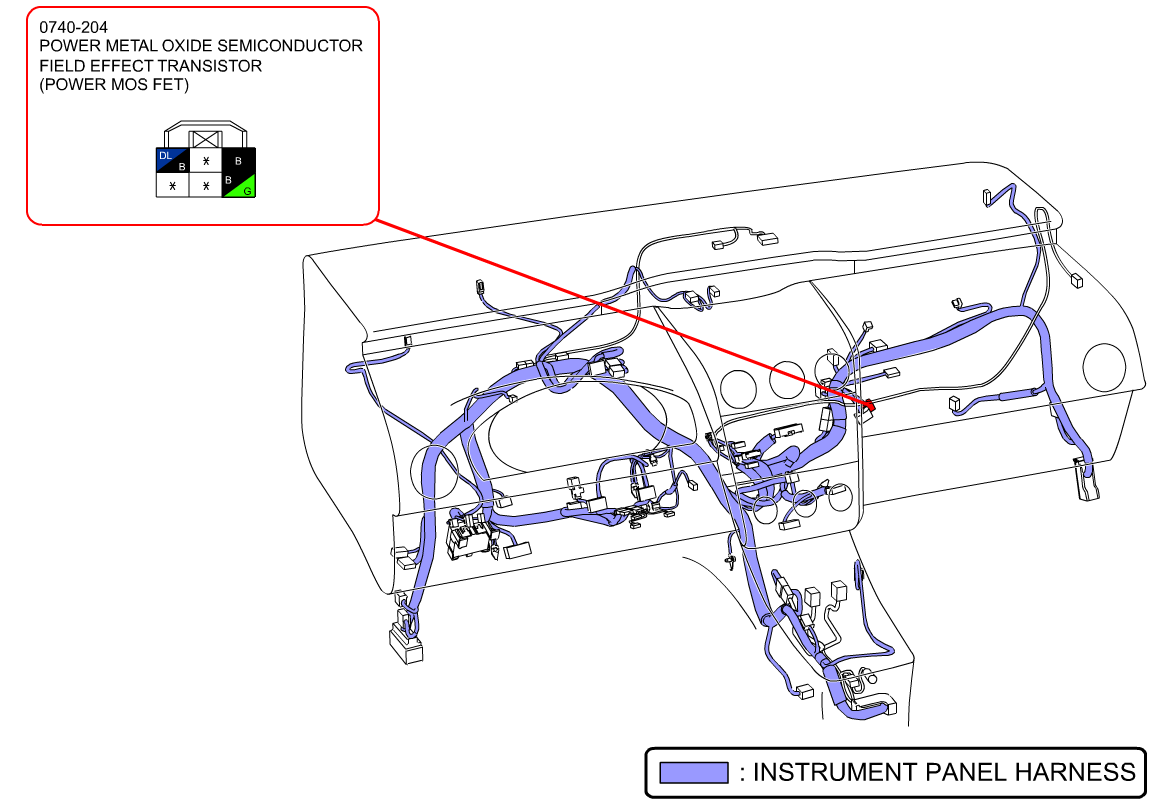

Fig 72: Upper Dash
Courtesy of MAZDA MOTORS CORP.
Fig 73: Upper Dash
Courtesy of MAZDA MOTORS CORP.
Fig 74: Upper Dash`
Courtesy of MAZDA MOTORS CORP.
Fig 75: Upper Dash
Courtesy of MAZDA MOTORS CORP.
Fig 76: Vehicle Overview
Courtesy of MAZDA MOTORS CORP.
Fig 77: Vehicle Overview & Lower Dash
Courtesy of MAZDA MOTORS CORP.

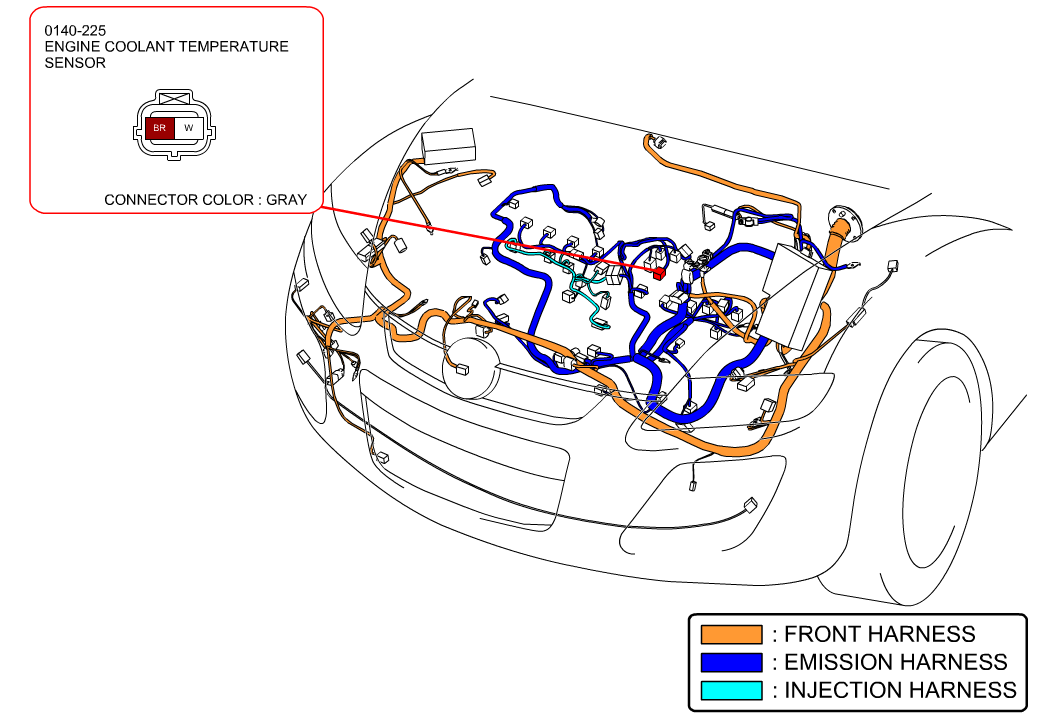

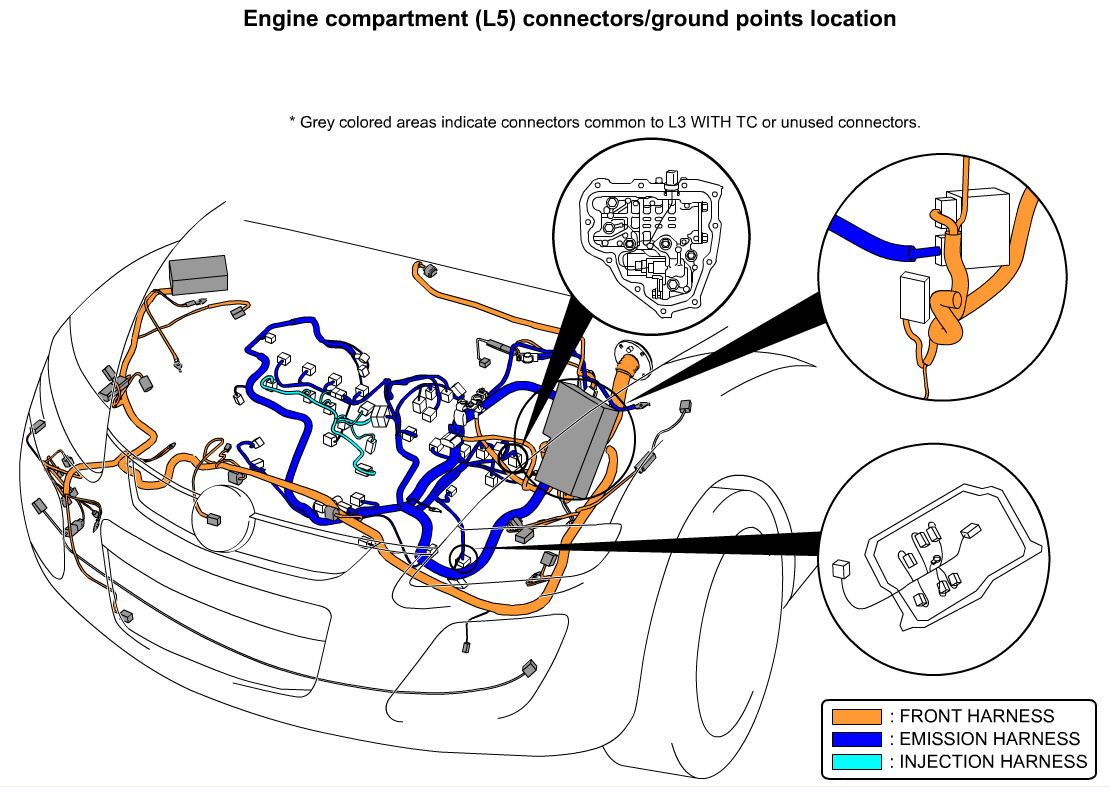

Fig 78: Engine Compartment (2.5L)
Courtesy of MAZDA MOTORS CORP.
Fig 79: Engine Compartment (2.5L)
Courtesy of MAZDA MOTORS CORP.
Fig 80: Engine Compartment (2.5L)
Courtesy of MAZDA MOTORS CORP.

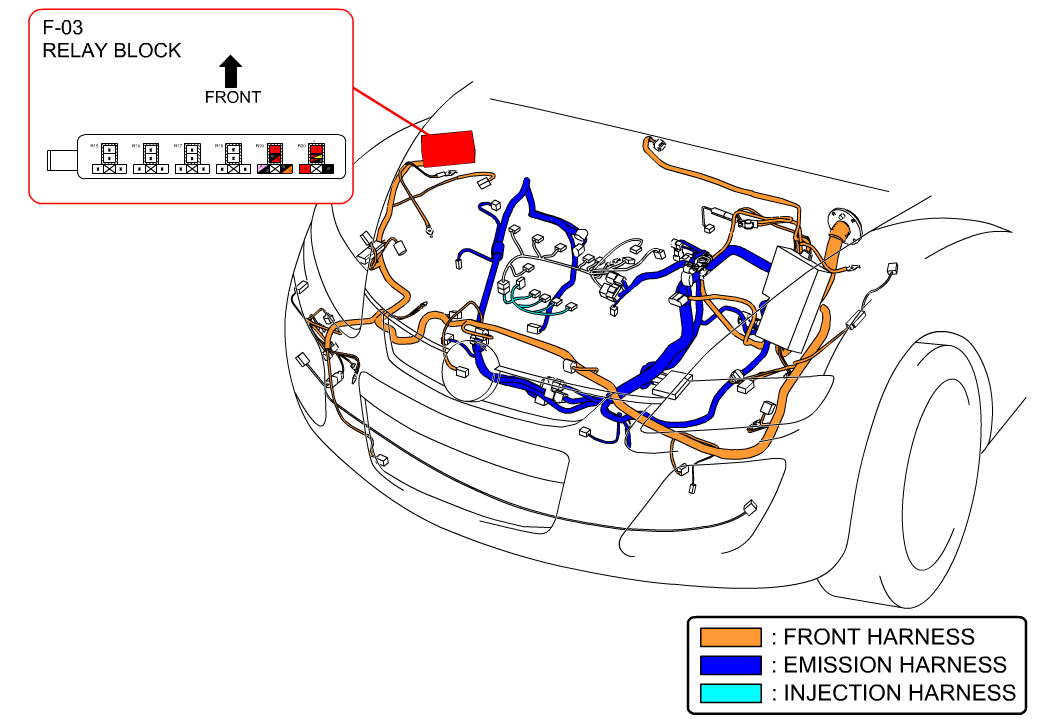

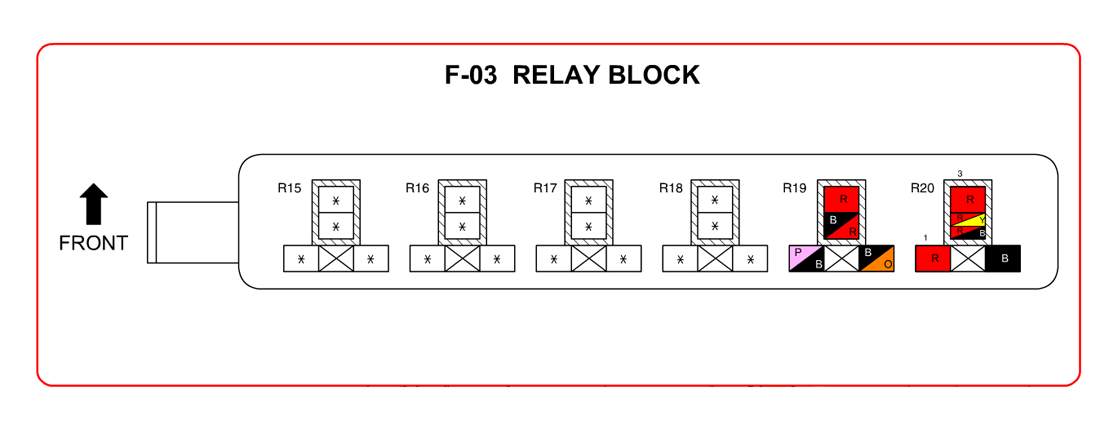

Fig 81: Relay Block
Courtesy of MAZDA MOTORS CORP.

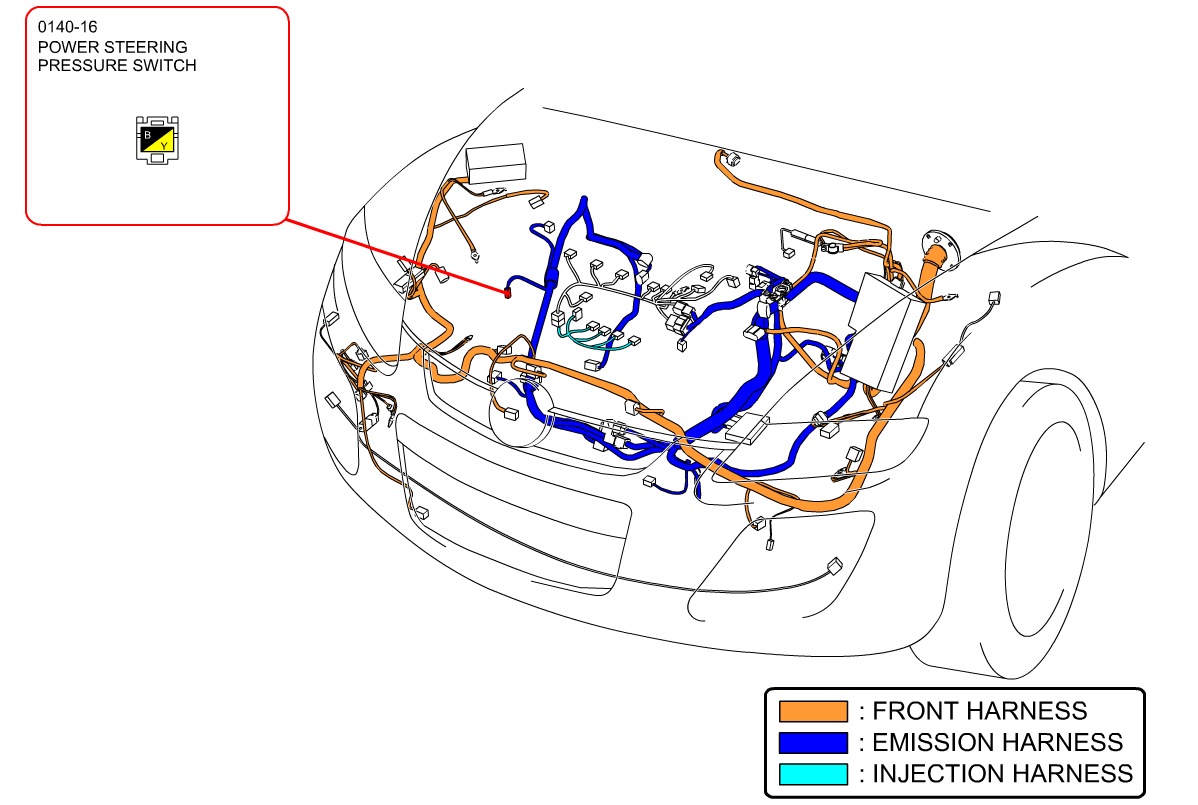

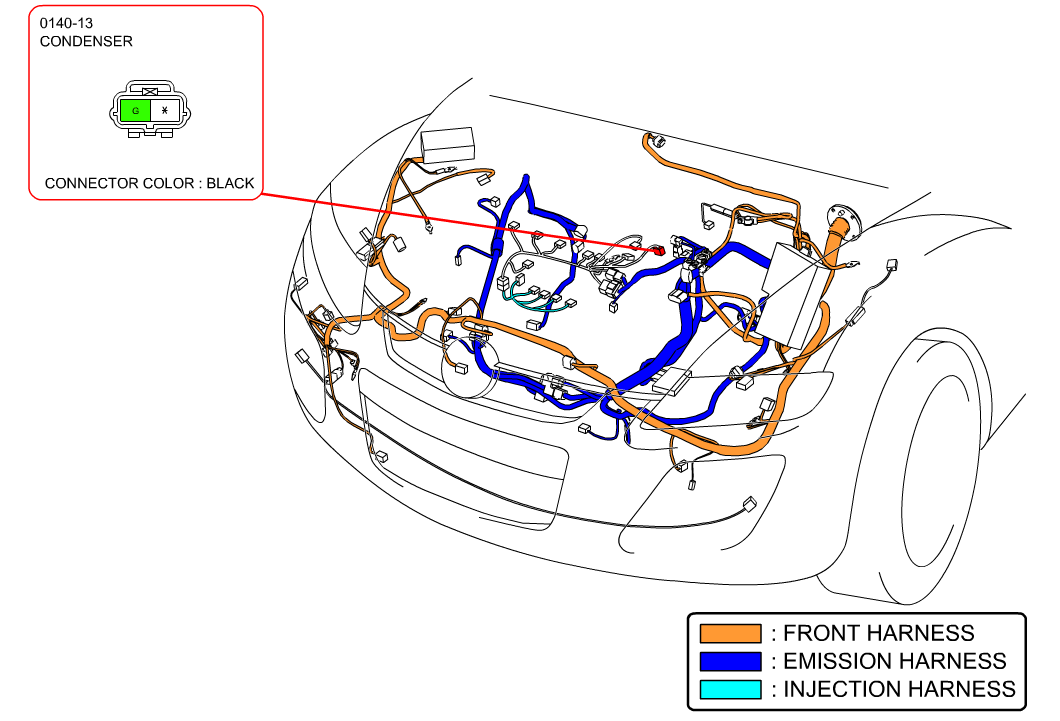

Fig 82: Engine Compartment
Courtesy of MAZDA MOTORS CORP.

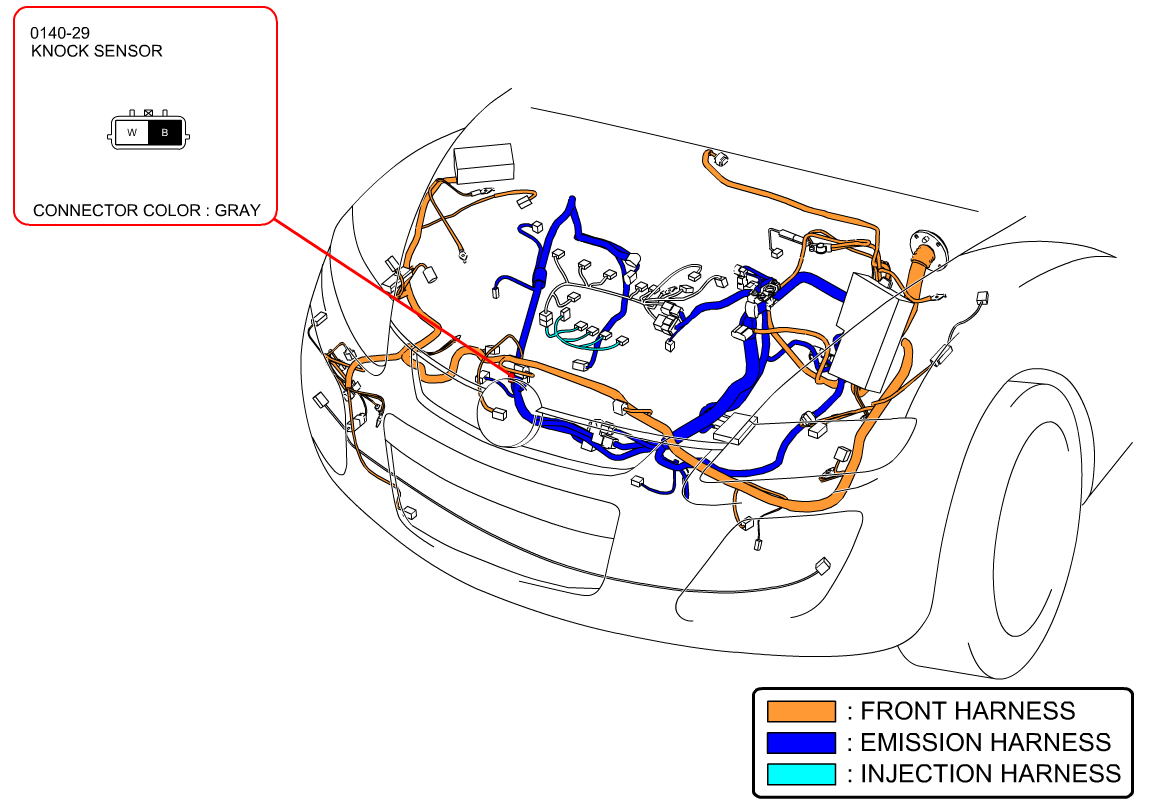

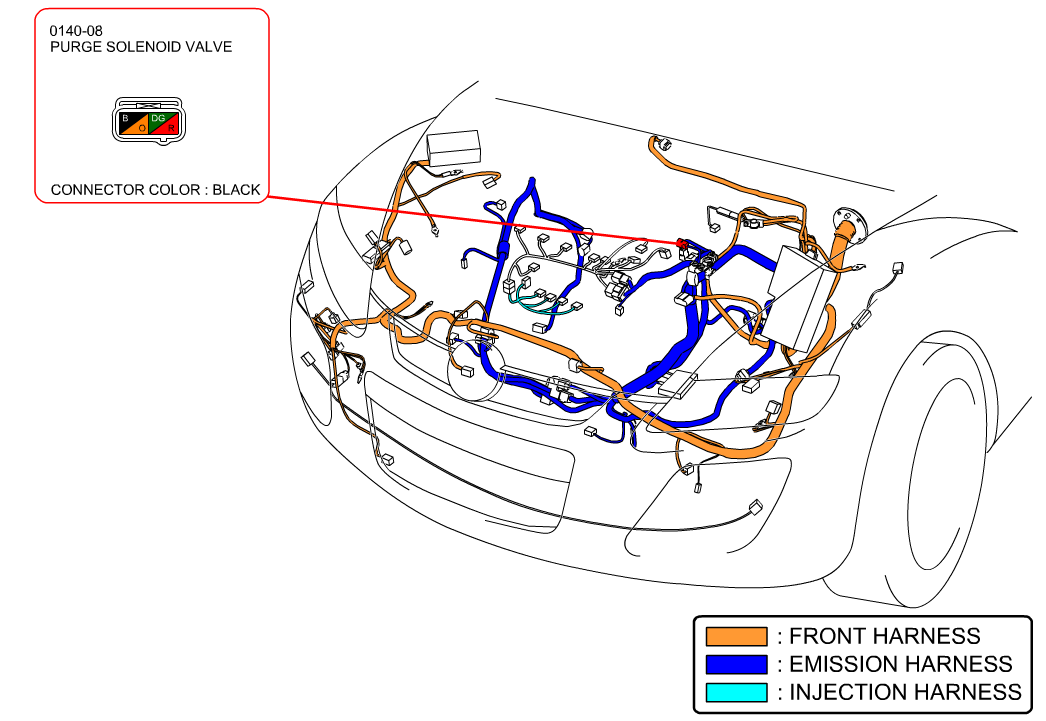

Fig 83: Engine Compartment
Courtesy of MAZDA MOTORS CORP.

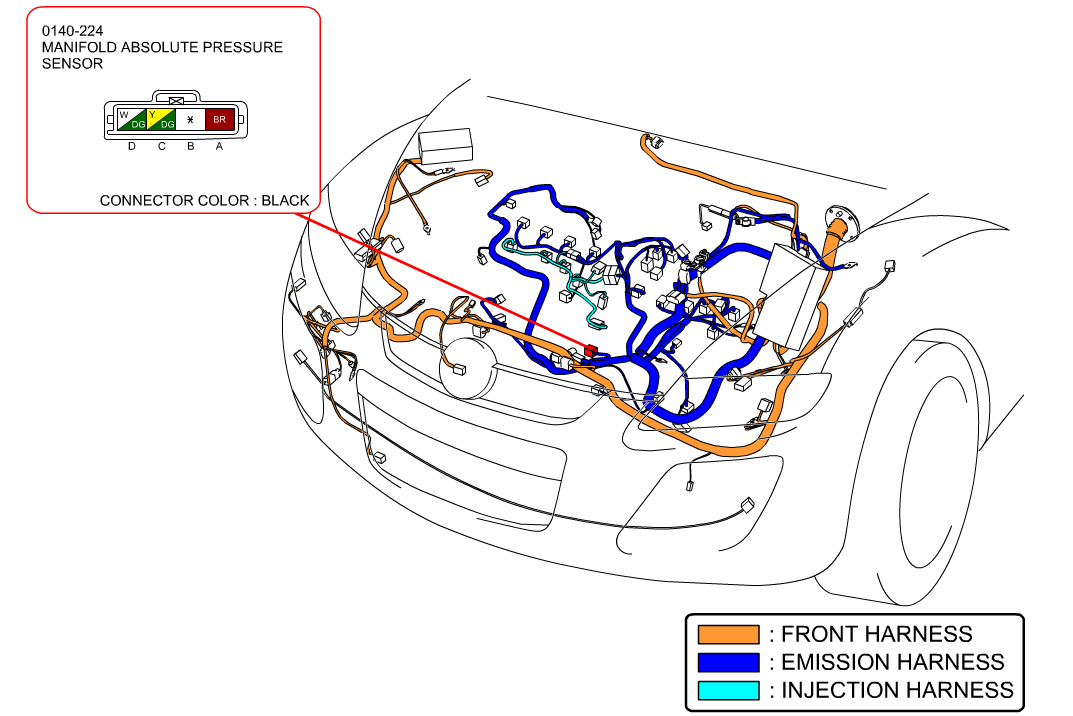

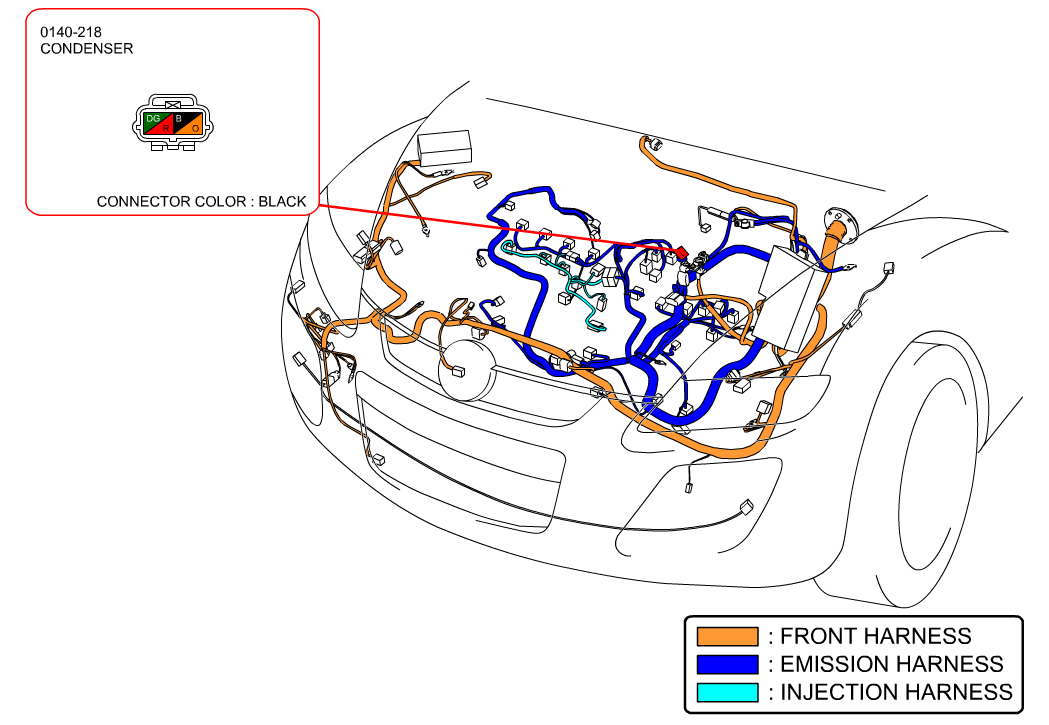

Fig 84: Engine Compartment (2.5L)
Courtesy of MAZDA MOTORS CORP.

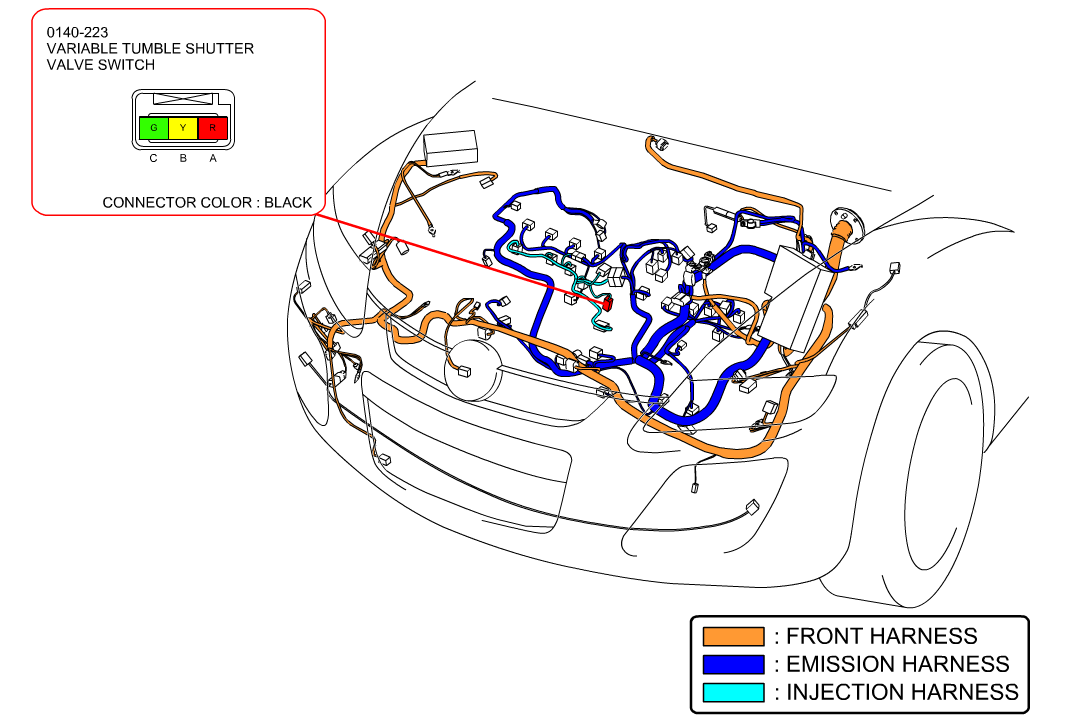

Fig 85: Engine Compartment (2.3L)
Courtesy of MAZDA MOTORS CORP.
Fig 86: Engine Compartment (2.5L)
Courtesy of MAZDA MOTORS CORP.

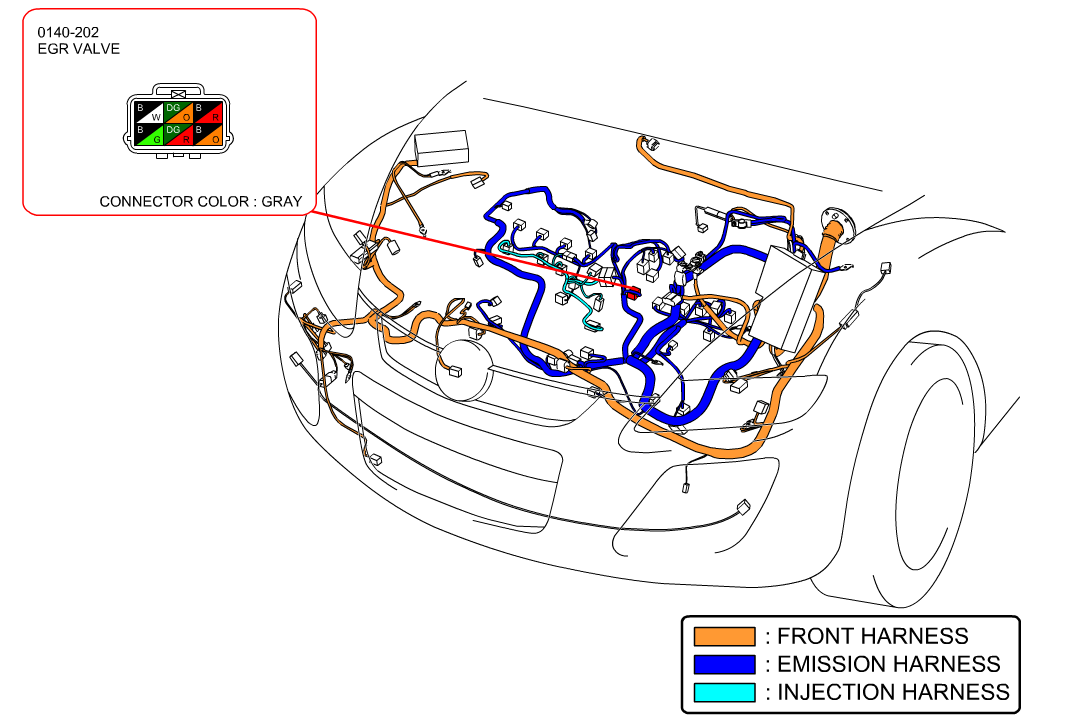

Fig 87: Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 88: Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 89: Engine Compartment (2.3L)
Courtesy of MAZDA MOTORS CORP.

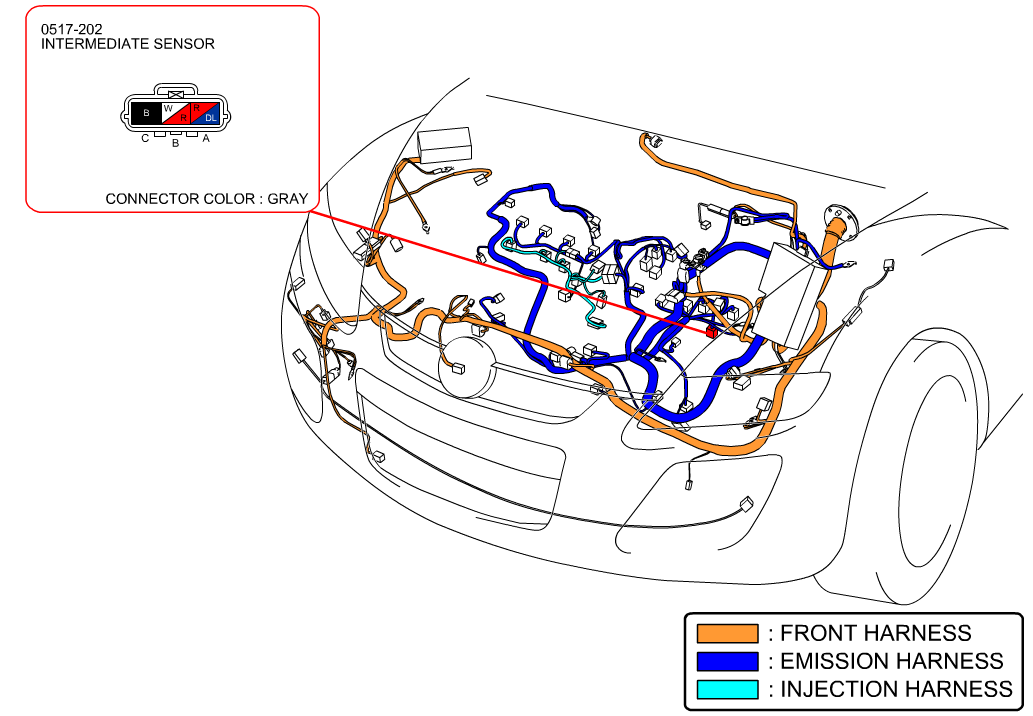

Fig 90: Engine Compartment (2.5L)
Courtesy of MAZDA MOTORS CORP.

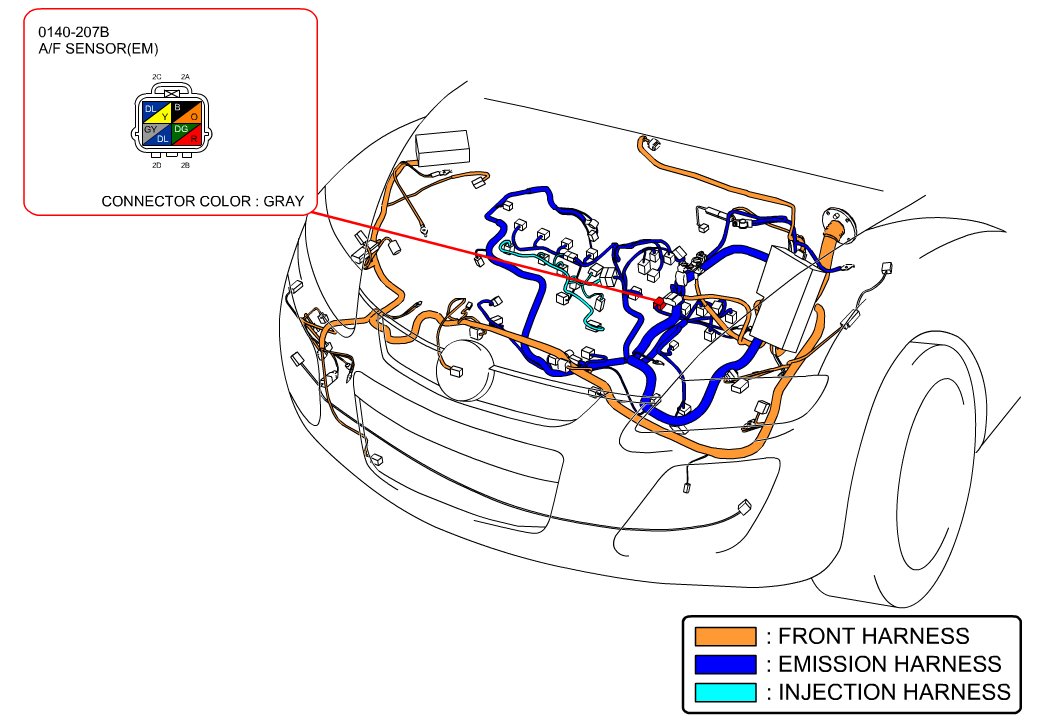

Fig 91: Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 92: Engine Compartment (2.3L)
Courtesy of MAZDA MOTORS CORP.
Fig 93: Engine Compartment (2.5L)
Courtesy of MAZDA MOTORS CORP.
Fig 94: Engine Compartment (2.3L)
Courtesy of MAZDA MOTORS CORP.
Fig 95: Engine Compartment (2.5L)
Courtesy of MAZDA MOTORS CORP.
Fig 96: Engine Compartment (2.3L)
Courtesy of MAZDA MOTORS CORP.
Fig 97: Engine Compartment (2.5L)
Courtesy of MAZDA MOTORS CORP.
Fig 98: Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 99: Engine Compartment (2.3L)
Courtesy of MAZDA MOTORS CORP.
Fig 100: Engine Compartment (2.5L)
Courtesy of MAZDA MOTORS CORP.

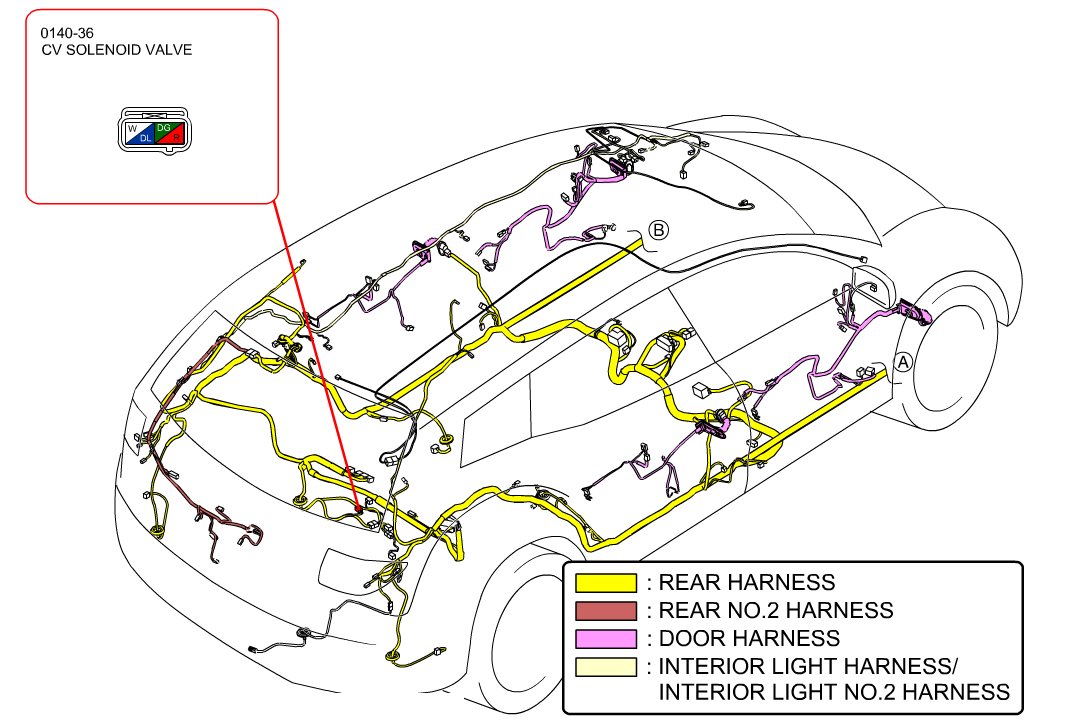

Fig 101: Vehicle Overview
Courtesy of MAZDA MOTORS CORP.
Fig 102: Vehicle Overview
Courtesy of MAZDA MOTORS CORP.
Fig 103: Vehicle Overview
Courtesy of MAZDA MOTORS CORP.
Fig 104: Upper Dash
Courtesy of MAZDA MOTORS CORP.
