Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Symptom Troubleshooting [Engine L3 With TC]
>>
Quick Diagnostic Chart
Quick Diagnostic Chart

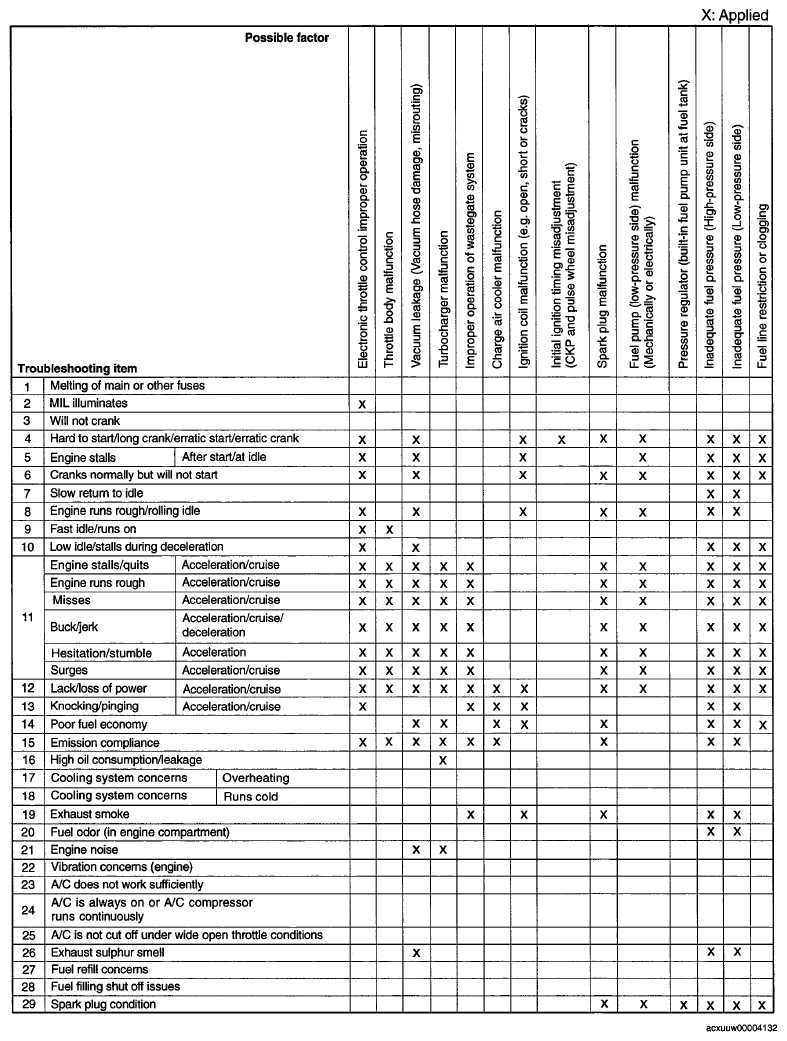

Fig 1: Quick Diagnostic Chart (L3 With TC) (7 Of 6)
Courtesy of MAZDA MOTORS CORP.

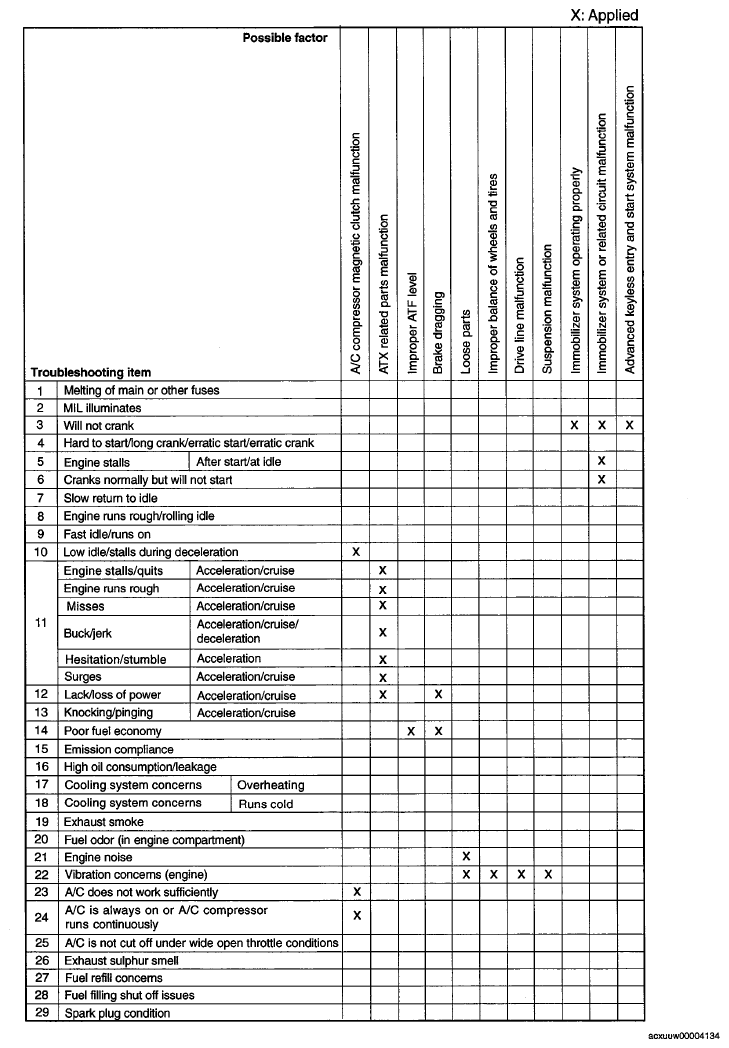

Fig 2: Quick Diagnostic Chart (L3 With TC) (7 Of 6)
Courtesy of MAZDA MOTORS CORP.

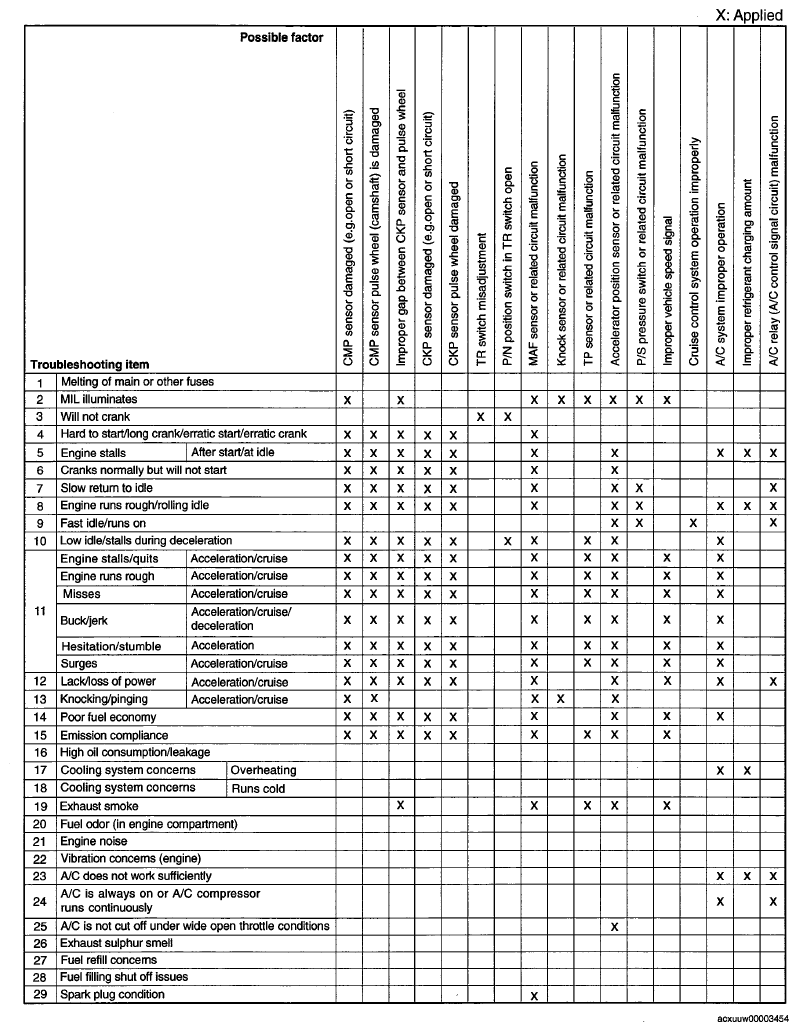

Fig 3: Quick Diagnostic Chart (L3 With TC) (7 Of 6)
Courtesy of MAZDA MOTORS CORP.

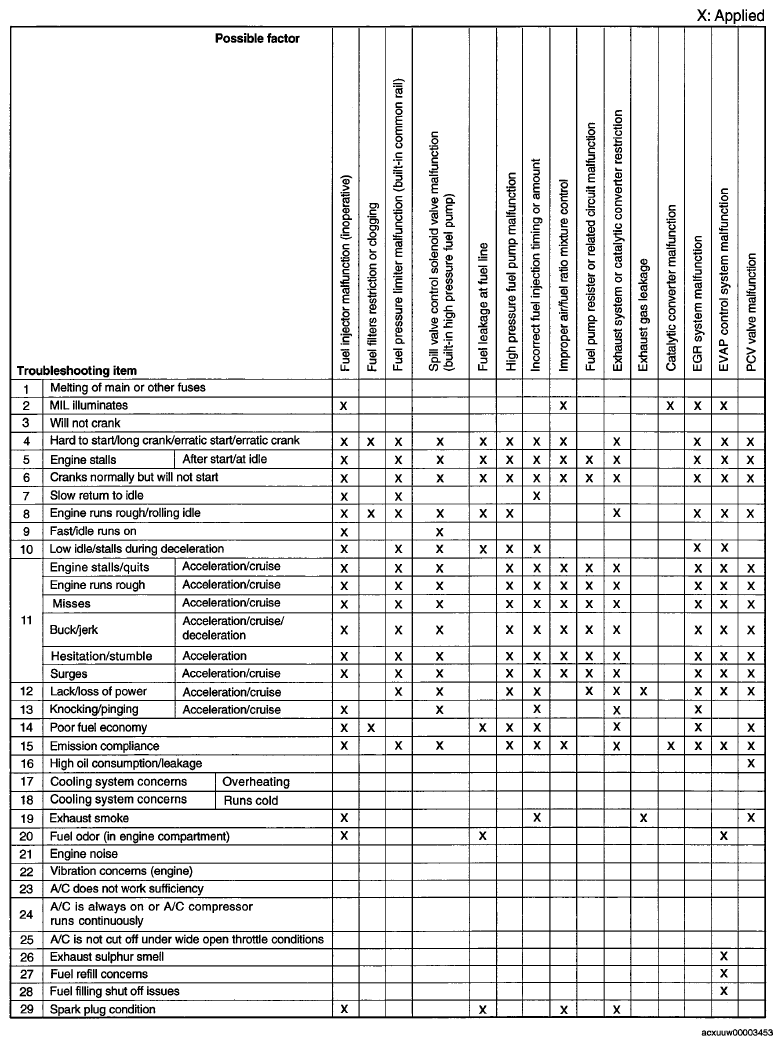

Fig 4: Quick Diagnostic Chart (L3 With TC) (7 Of 6)
Courtesy of MAZDA MOTORS CORP.

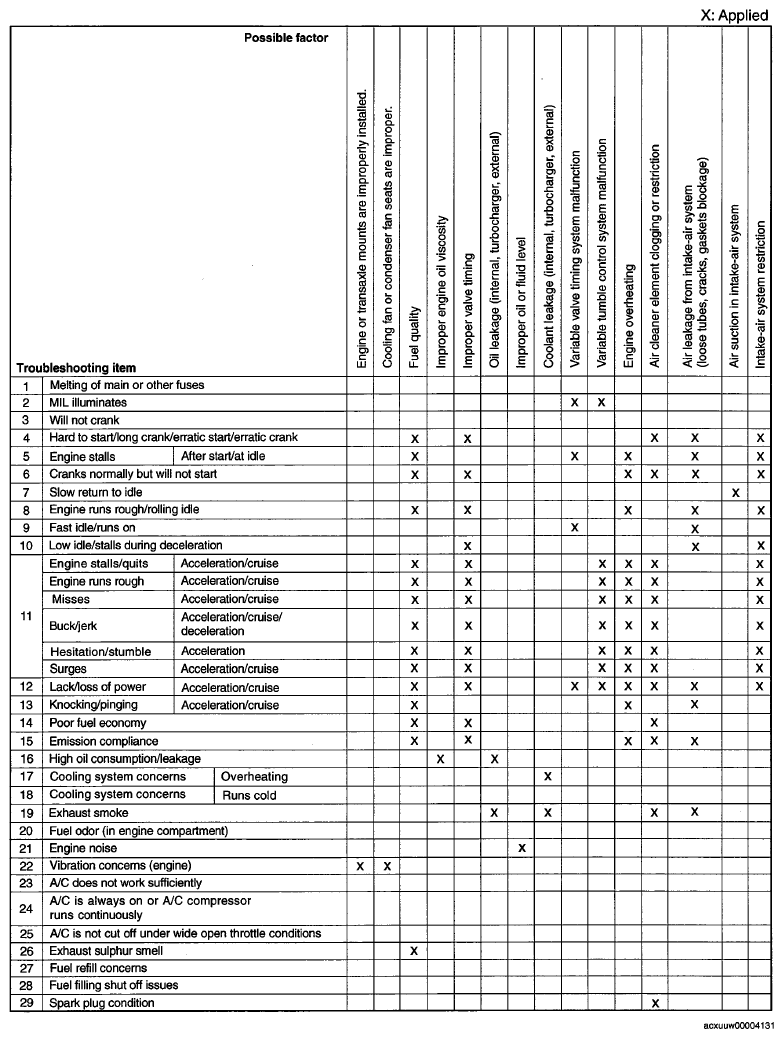

Fig 5: Quick Diagnostic Chart (L3 With TC) (7 Of 6)
Courtesy of MAZDA MOTORS CORP.

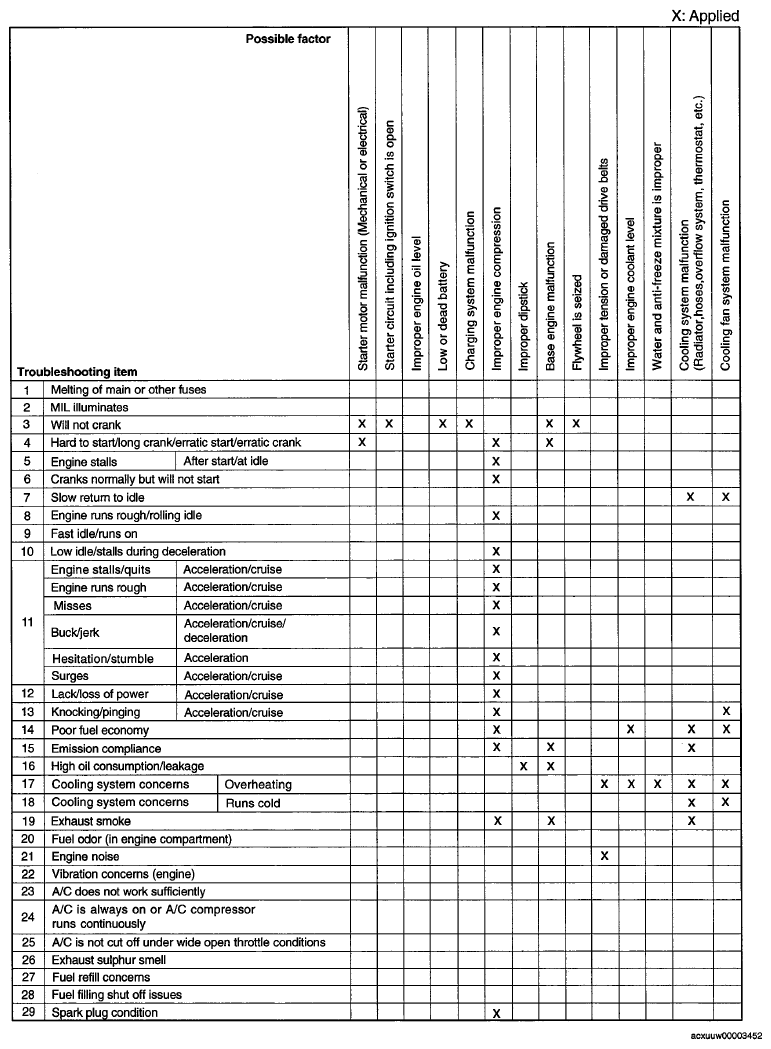

Fig 6: Quick Diagnostic Chart (L3 With TC) (7 Of 6)
Courtesy of MAZDA MOTORS CORP.

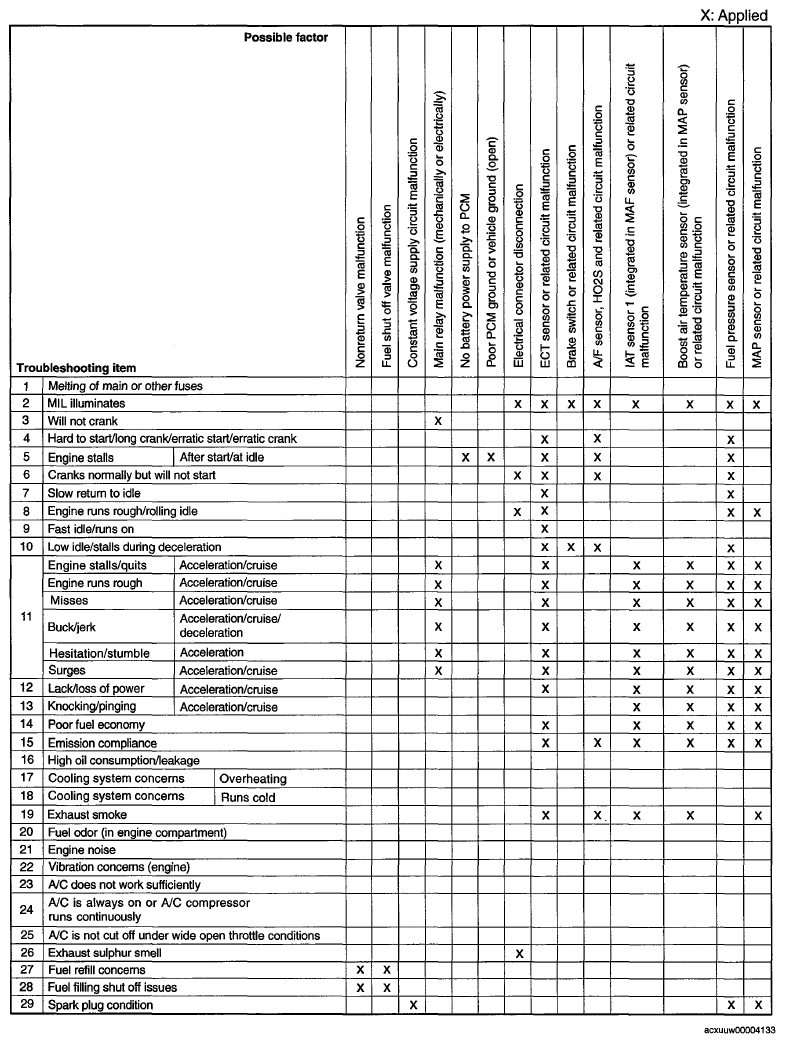

Fig 7: Quick Diagnostic Chart (L3 With TC) (7 Of 7)
Courtesy of MAZDA MOTORS CORP.
