Control System Device And Control Relationship Chart

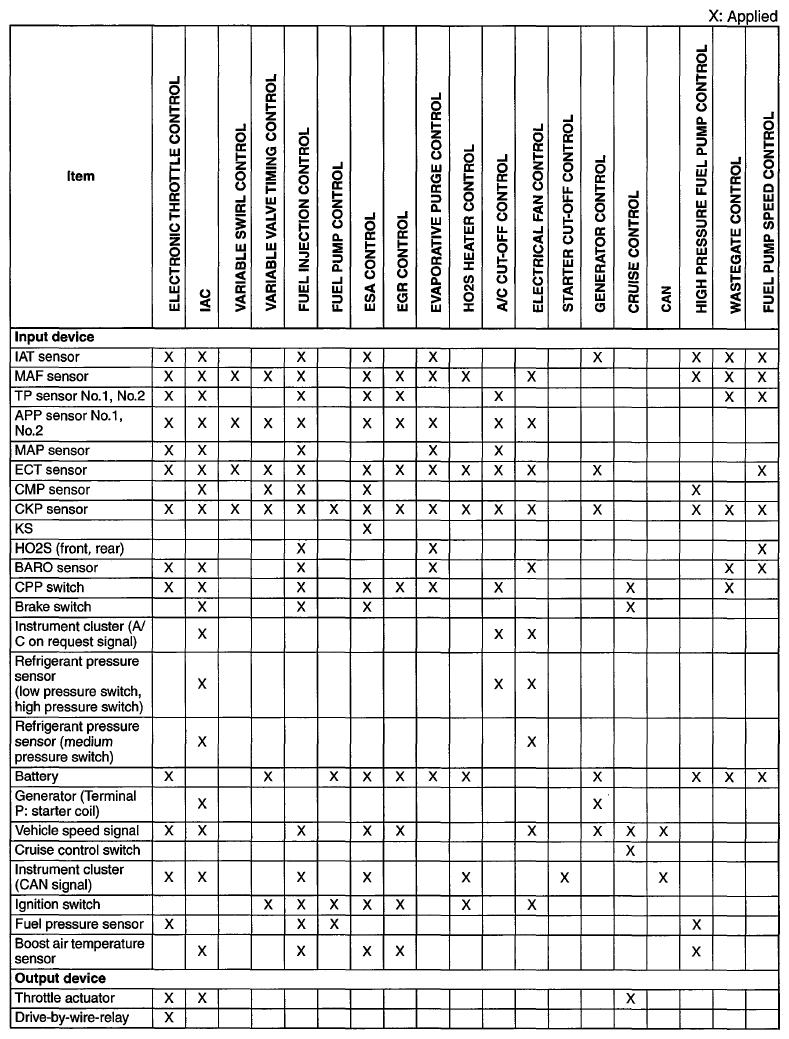

Fig 1: Control System Device And Control Relationship Chart (L3 With TC) (1 Of 2)
G06724101Courtesy of MAZDA MOTORS CORP.

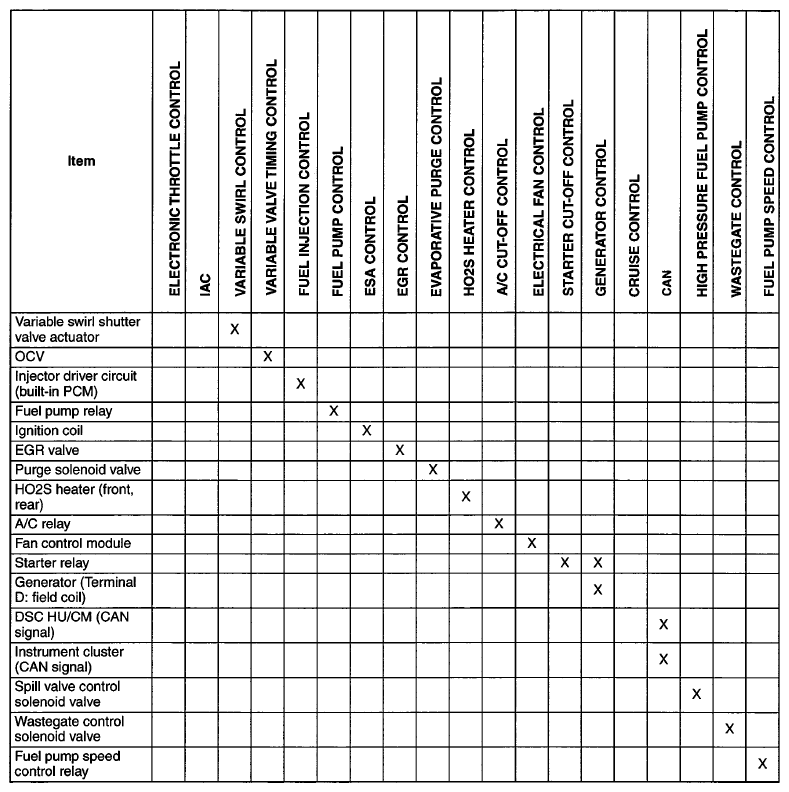

Fig 2: Control System Device And Control Relationship Chart (L3 With TC) (2 Of 2)
G06724102Courtesy of MAZDA MOTORS CORP.
