DSC HU/CM Connector Removal Note

  1. Pull the lock lever up in the direction of the arrow.
  2. Pull the connector toward the vehicle rear and remove it.

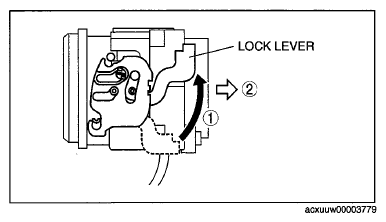

    Fig 1: Pulling Lock Lever Up
    G06725263Courtesy of MAZDA MOTORS CORP.
