Advanced Keyless Entry and Start System/Immobilizer System

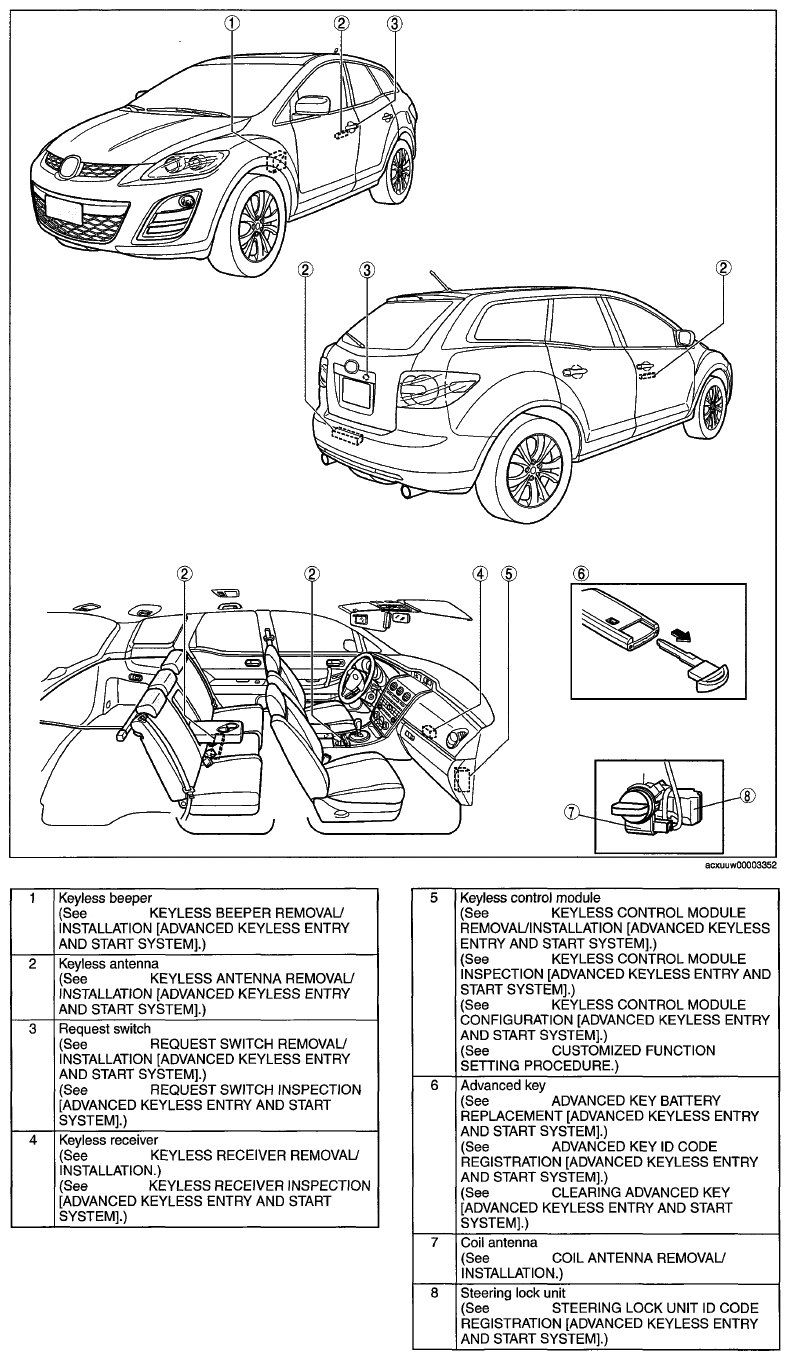

Fig 1: Identifying Security And Locks Components Location (Advanced Keyless Entry And Start System/Immobilizer System)
G06726176Courtesy of MAZDA MOTORS CORP.
