Keyless Control Module Configuration [Advanced Keyless Entry And Start System]

Connect the M-MDS to the DLC-2.
After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
- When using the IDS (laptop PC)
  1. Select the "Module Programming".
Then, select items from the screen menu in the following order.
1. Select "Programmable Module Installation".
2. Select "RKE".
Perform the configuration according to the directions on the screen.

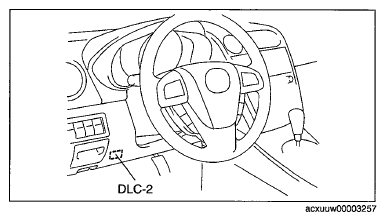

Fig 1: Identifying DLC-2 Location
Courtesy of MAZDA MOTORS CORP.
Retrieve DTCs by the M-MDS, then verify that there is no DTC present.
- If a DTC (s) is detected, perform the applicable DTC inspection. (See DTC INSPECTION [ADVANCED KEYLESS ENTRY AND START SYSTEM] .)
