| 1 |
REPLACE KEYLESS CONTROL MODULE
Replace the keyless control module. (See
KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND START SYSTEM] .) |
Go to the next step. |
| 2 |
PERFORM PARAMETER RESET
- Connect the M-MDS to the DLC-2. (See
M-MDS CONNECTING PROCEDURE .)

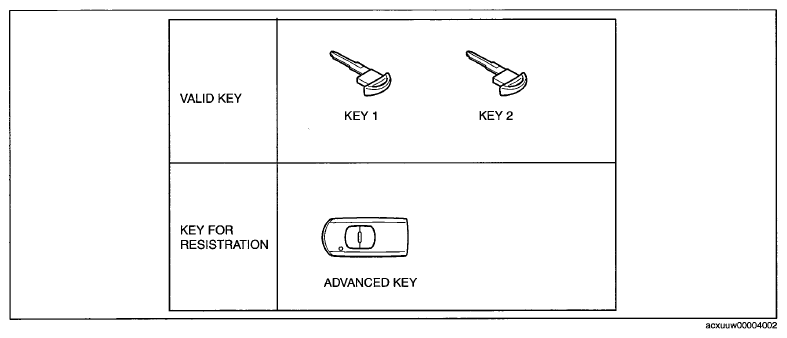

- Turn the ignition switch to the ON position using key 1.
NOTE:
- Although the security light starts flashing and DTC 15 is displayed after approx. 1 min
, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
- After vehicle identification, select the following from the M-MDS initial screen.
- Using an IDS (laptop PC):
- Select the "Body"
- Select the "Security"
- Select the "PATS Functions"
- Using a PDS (Pocket PC):
- Select the "All Tests and Calibrations"
- Select the "PATS Functions"
- Select "Parameter Reset" from the M-MDS screen menu.
- Perform the security access according to the directions on the M-MDS screen. (See
SECURITY ACCESS PROCEDURE .)
- Select the replaced part "SKE/RKE" according to the directions on the M-MDS.
CAUTION:
- At this time, do not select the other parts from the M-MDS menu.
|
Go to the next step. |
| 3 |
CLEAR IGNITION KEY ID NUMBERS
- Select "Ignition Key Code Erase and Program" from the M-MDS screen menu.
- Clear the ignition key ID number according to the directions on the M-MDS.
|
Go to the next step. |
| 4 |
PERFORM IGNITION KEY ID NUMBER PROGRAMMING
- Program two keys according to the directions on the M-MDS.
- Verify that the PATS function menu is displayed again on the M-MDS screen.
|
Go to the next step. |
| 5 |
PERFORM ADVANCED KEY PROGRAMMING
- Select "Program Additional advanced key" from the M-MDS screen menu.
- Program the advanced key according to the directions on the M-MDS.
- Verify that the PATS function menu is displayed again on the M-MDS screen.
|
Go to the next step. |
| 6 |
PERFORM STEERING LOCK UNIT PRogramming
- Select "Steering Lock Unit Programming" from the M-MDS screen menu.
- Complete the Steering Lock Unit Programming according to the directions on the M-MDS.
(See
STEERING LOCK UNIT ID CODE REGISTRATION [ADVANCED KEYLESS ENTRY AND START SYSTEM] .)
- After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Finish (this menu)".
- Turn the ignition switch to the LOCK position.
- Disconnect the M-MDS from the DLC-2.
- Remove the programmed advanced key from the vehicle.
|
Go to the next step. |
| 7 |
VERIFY KEY 1 PROGRAMMING PERFORMED CORRECTLY
- Start the engine using key 1.

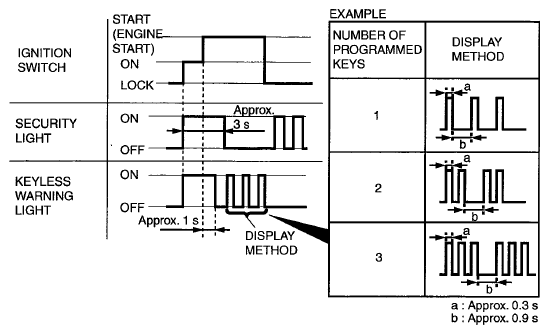

- Verify that the security light and keyless warning light operate as shown in the following figure.
- Turn the ignition switch to the LOCK position and remove key 1.
 Courtesy of MAZDA MOTORS CORP.
|
Go to the next step. |
| 8 |
VERIFY KEY 2 PROGRAMMING PERFORMED CORRECTLY
- Start the engine using key 2.
- Verify that the security light and keyless warning light operate as shown in the following figure.
- Turn the ignition switch to the LOCK position and remove key 2.
- Are there other keys to be programmed?
 Courtesy of MAZDA MOTORS CORP.
|
Yes |
Repeat Step 8 using each programmed key. |
| No |
Go to the next step. |
| 9 |
VERIFY ADVANCED KEY PROGRAMMING PERFORMED CORRECTLY
- Bring the programmed advanced key into the vehicle.
- Close all doors.
- Remove the key from the key cylinder and place it on the front passenger's seat.
- Start the engine using the advanced key.
- Verify that the security light and keyless warning light operate as shown in the following figure.
- Turn the ignition switch to the LOCK position.
 Courtesy of MAZDA MOTORS CORP.
|
Procedure is completed |
