Advanced Keyless Entry And Start System

NOTE:

Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the CUSTOMIZED FUNCTION SETTING PROCEDURE.

Connect the M-MDS to the DLC-2.
After the vehicle is identified, select the following items from the initial screen of the M-MDS. When using the IDS (laptop PC)
1. Select the "Module Programming".
Then, select items from the screen menu in the following order.
1. Select "Programmable Parameters".
2. Select "RKE".

Select an item name, and then select option.

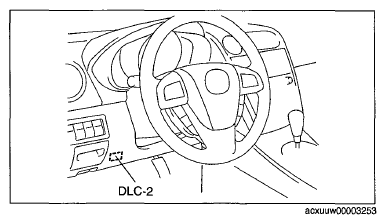

Fig 1: Identifying DLC-2 Location

G06726246

Courtesy of MAZDA MOTORS CORP.

MAZDA MODULAR DIAGNOSTIC SYSTEM (M-MDS) DISPLAY REFERENCE CHART

Mazda Modular Diagnostic System (M-MDS) display	Function	Initial setting	Setting content	Control unit
Answer Back Buzzer	Answer back buzzer function can be set.	Enabled	Disabled/Enabled	Keyless control module
Advanced key battery low warning	Advanced key remaining battery level/battery dead warning can be set.	Enabled	Disabled/Enabled	Keyless control module
Automatic Locks	Automatic locks function can be set.	Disabled	Disabled/Enabled	Keyless control module
Auto relock timer (with SKE)	Auto re-lock operation timing can be changed.	30s	30s/60s/90s	Keyless control module
2 stage door unlocking by request switch	The method for unlocking the doors using the request switch can be selected.	Enabled	Disabled/Enabled	Keyless control module
2 stage door unlocking by transmitter	The method for unlocking the doors using the transmitter can be selected.	Enabled	Disabled/Enabled	Keyless control module
