Generator Disassembly/Assembly [L5]

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

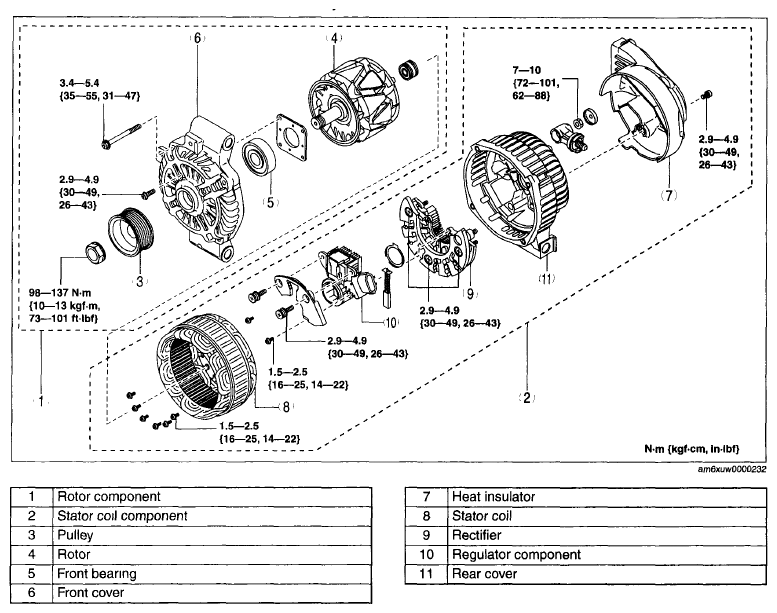

Fig 1: Generator Replacement Components With Torque Specifications
G06205141Courtesy of MAZDA MOTORS CORP.
