Brake Pipe Installation Note

  1. Align the alignment marks made before removal and install the brake pipe to the ABS/TCS HU/CM referring to the illustration.

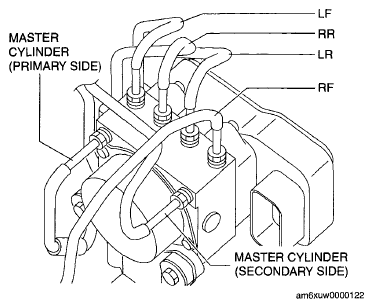

    Fig 1: Identifying ABS/TCS HU/CM Brake Pipe
    G06205561Courtesy of MAZDA MOTORS CORP.
