Rear Console Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
    2. Shift knob (MTX). See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .
    3. Shift panel. See SHIFT PANEL REMOVAL/INSTALLATION .
    4. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
    5. Center panel lower. See CENTER PANEL LOWER REMOVAL/INSTALLATION .
  3. Disconnect the auxiliary jack connector and accessory socket connector.

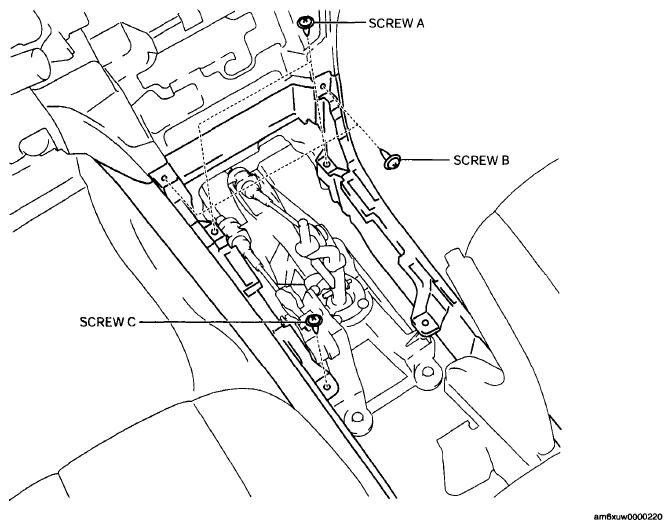

  4. Remove the screws A, B and screw C.
    Fig 1: Identifying Rear Console Mounting Screws
    G06199476Courtesy of MAZDA MOTORS CORP.

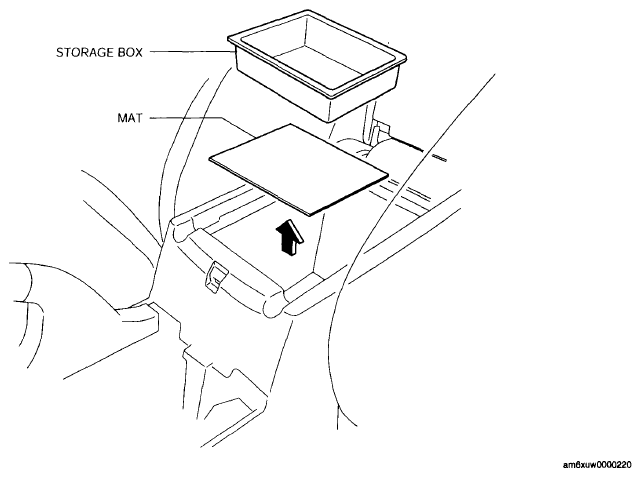

  5. Remove the storage box and mat.
    Fig 2: View Of Storage Box And Mat
    G06199477Courtesy of MAZDA MOTORS CORP.

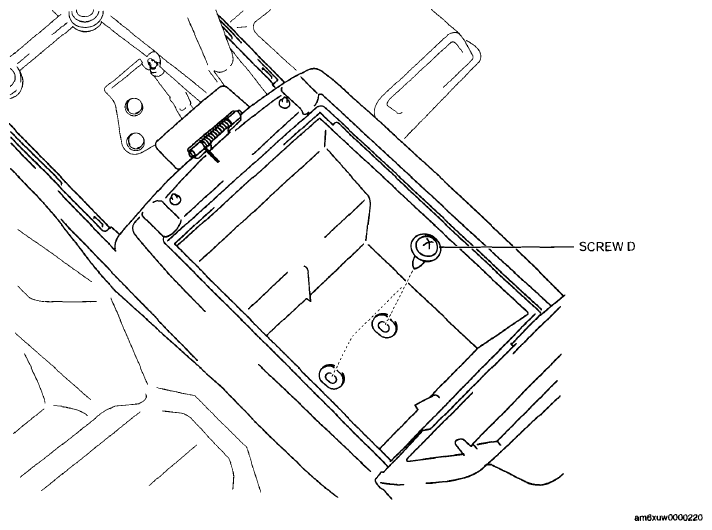

  6. Open the console lid and remove the screws D.
    Fig 3: Identifying Screw D
    G06199478Courtesy of MAZDA MOTORS CORP.

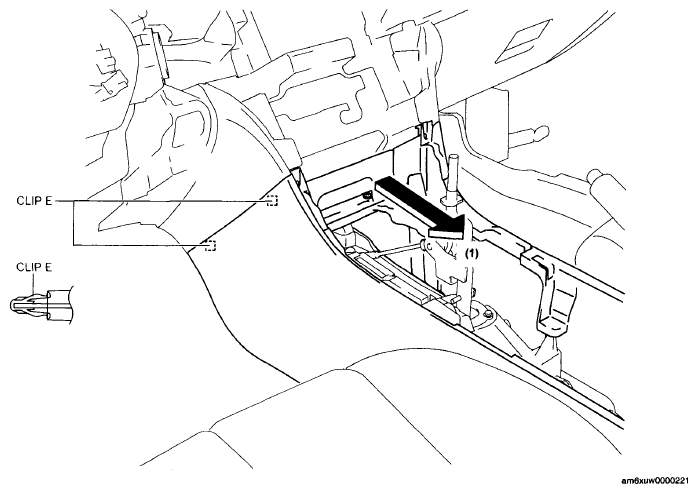

  7. Pull the rear console in the direction of the arrow in the order of (1), then detaching clip E.
    Fig 4: Pulling Rear Console In Direction Of Arrow
    G06199479Courtesy of MAZDA MOTORS CORP.
