Dashboard Disassembly/Assembly

  1. Remove the ventilator grilles. See VENTILATOR GRILLE REMOVAL/INSTALLATION .
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

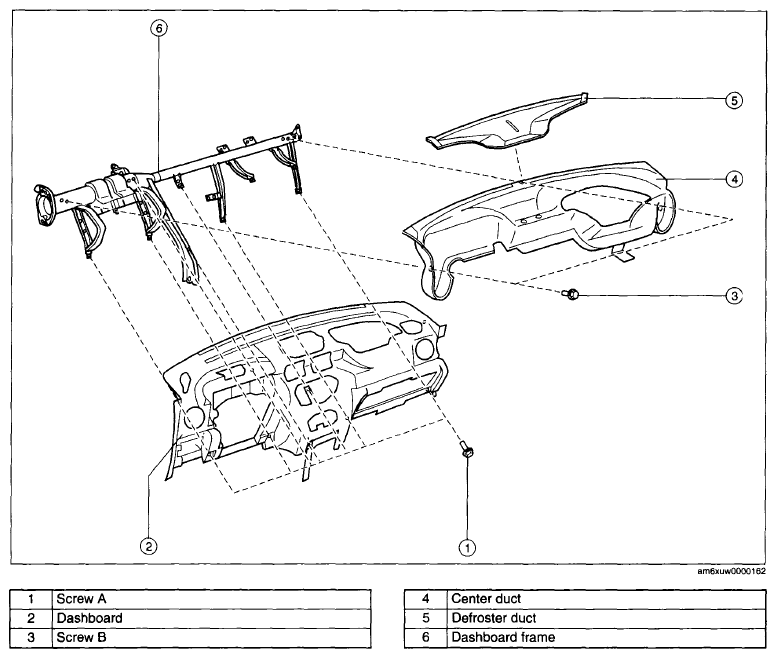

    Fig 1: Disassembled View Of Dashboard
    G06199453Courtesy of MAZDA MOTORS CORP.
