Trunk Lid Lock Striker Removal/Installation

  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the bolts, then remove the trunk lid lock striker.

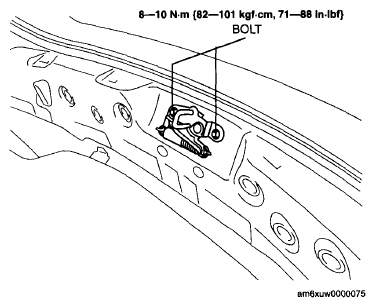

    3. Fig 1: Trunk Lid Lock Striker Bolts With Torque Specifications
    G06200941Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Adjust the liftgate lock striker. (See TRUNK LID ADJUSTMENT .)
