Guide Assembly Note
Guide Assembly Note
Move the pin to the position shown in the illustration.

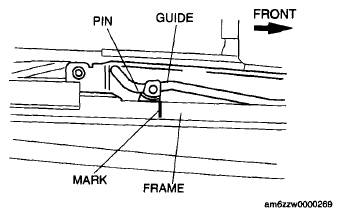

Fig 1: Identifying Position Of Moving Pin
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
