6 i SV, 2.5 H
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Symptom Troubleshooting [Engine L5]
>>
Control System Device And Control Relationship Chart [L5]
Control System Device And Control Relationship Chart [L5]

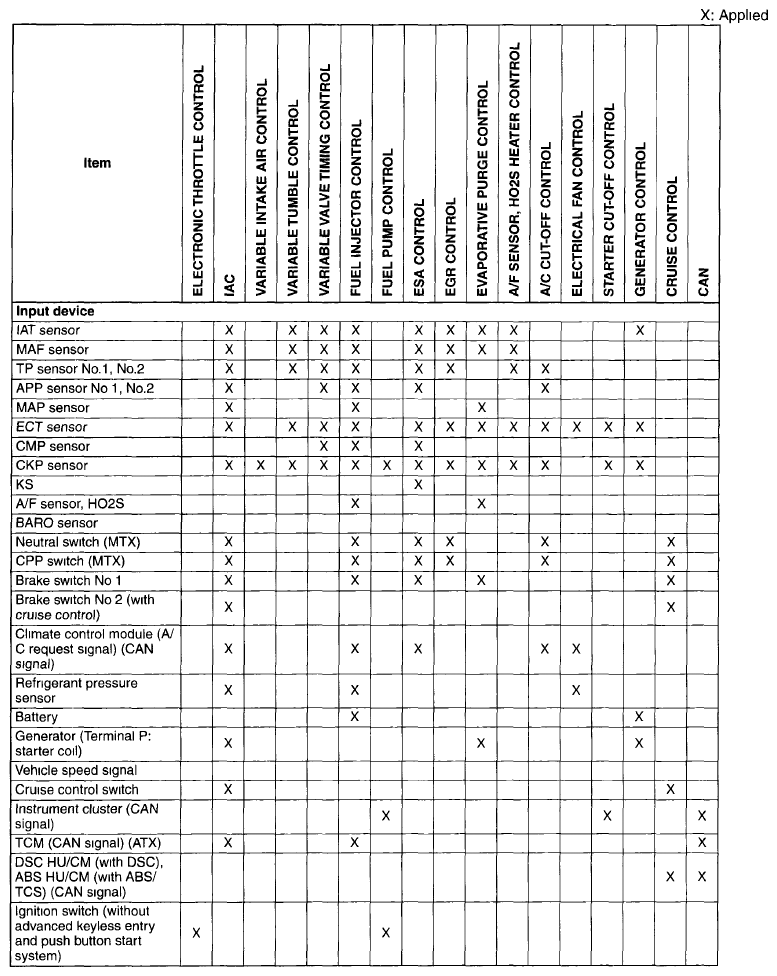

Fig 1: Control System Device And Control Relationship Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

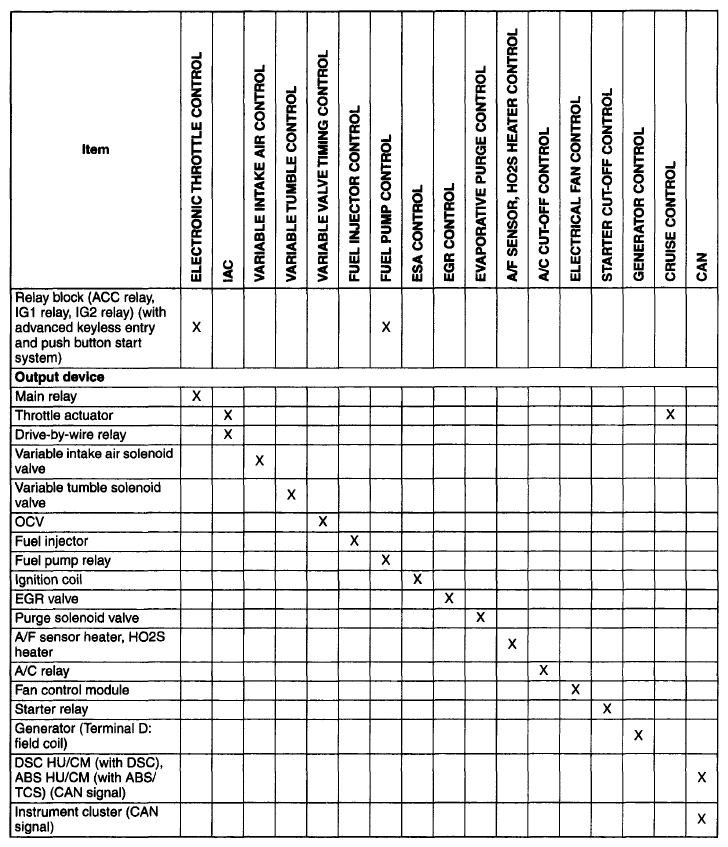

Fig 2: Control System Device And Control Relationship Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
