Electric Power Steering Oil Pump Component Removal/Installation: Notes

CAUTION:
  • Be careful not to drop the electric power steering oil pump component as the internal parts of the EHPAS CM could be damaged. Replace the electric power steering oil pump component if it is subjected to an impact.
  1. Remove the under cover, splash shield (RH) and mudguard (RH).
  2. Remove the washer tank. (Vehicles with the washer fluid-level sensor) (See WASHER TANK REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table in illustration.
  4. Install in the reverse order of removal.

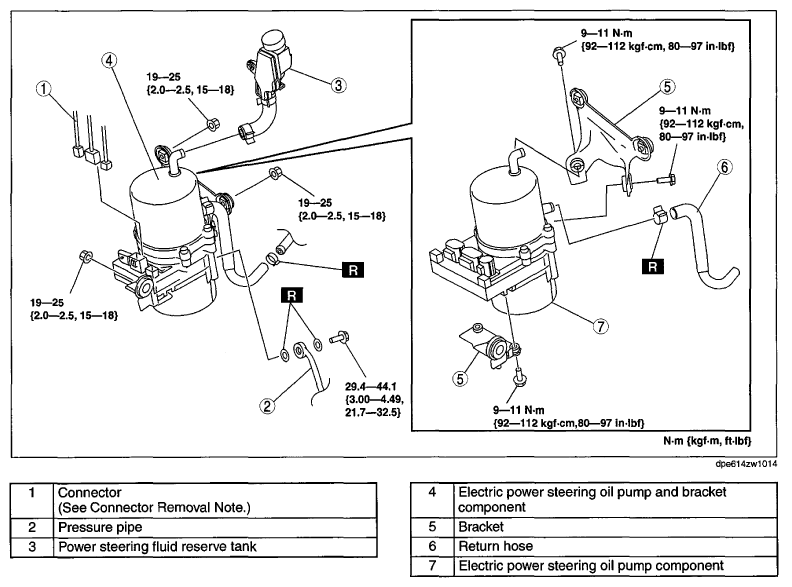

    Fig 1: Electric Power Steering Oil Pump Replacement Components With Torque Specifications
    G06761615Courtesy of MAZDA MOTORS CORP.
