Resistance Inspection

Measure the resistance of the spark plug using a tester as shown in the illustration.
- If not within the specification, replace the spark plug.
  Spark plug resistance [25°C {77°F}] 3.0-7.5 kilohms

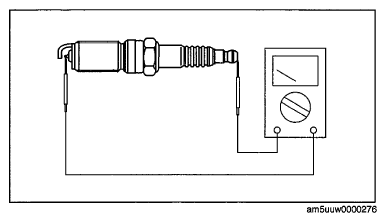

  Fig 1: Measuring Resistance Of Spark Plug
  Courtesy of MAZDA MOTORS CORP.
