Joint Hose Installation Note

  1. Install the joint hose and clamp as shown in the illustration.

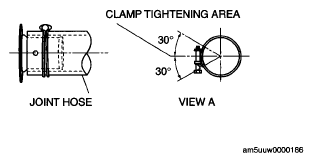

    Fig 1: Identifying Joint Hose Clamp Tightening Area
    G05544703Courtesy of MAZDA MOTORS CORP.
